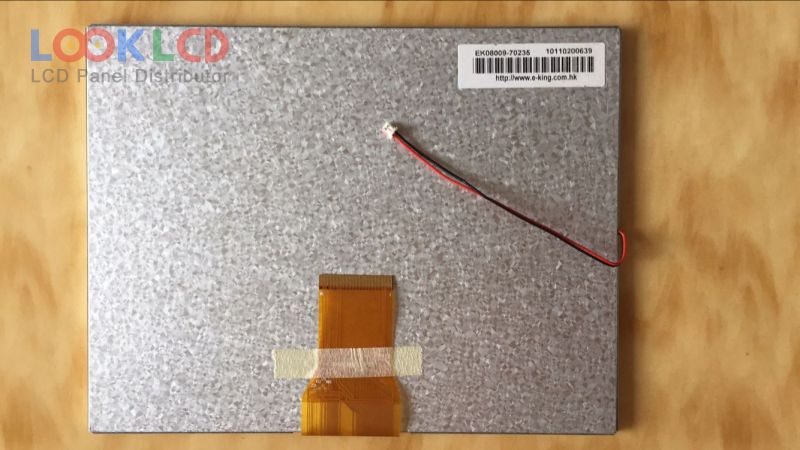

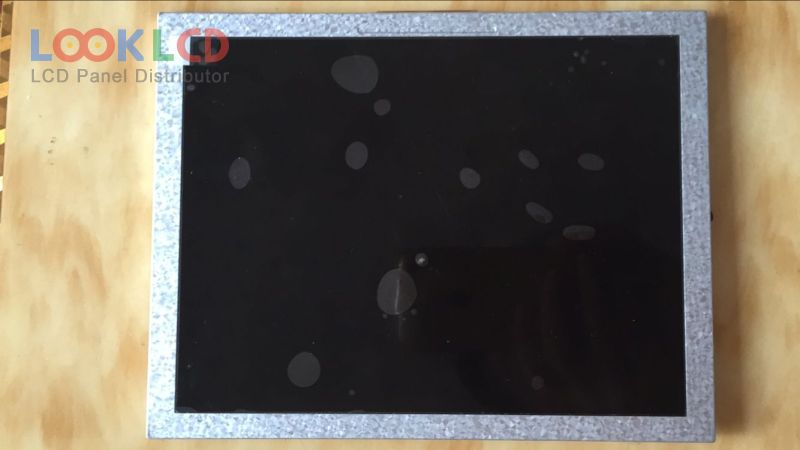

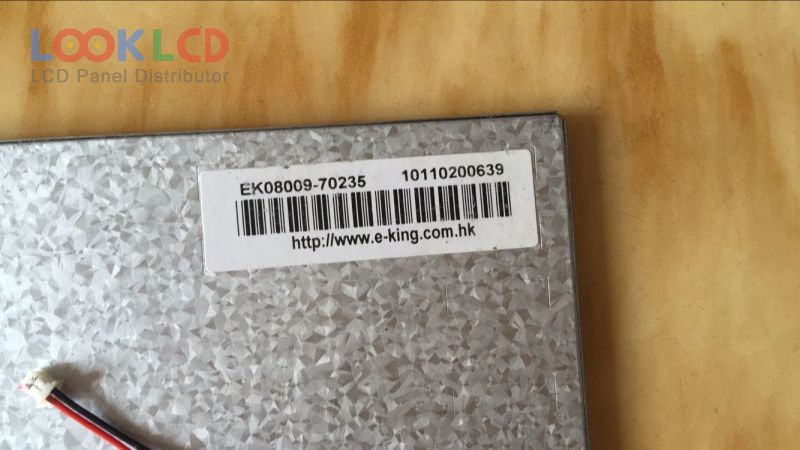

| PartNumber | EK08009-70235 |
| Marca | Other |
| mărimea | 8.0 |
| Aplicație | DPF |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 500:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | No Brand |
| model de panou | EK08009-70235 4 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 8.0 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 162×121.5 mm |
| contur | 183×141 mm |
| suprafaţă | Antiglare |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193150% |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S11PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit), 50 pins |
| tensiune de intrare | 3.3/10.4V (Typ.)(VCC/AVDD) |
| rohs: | |
| aplicarea | DPF |
