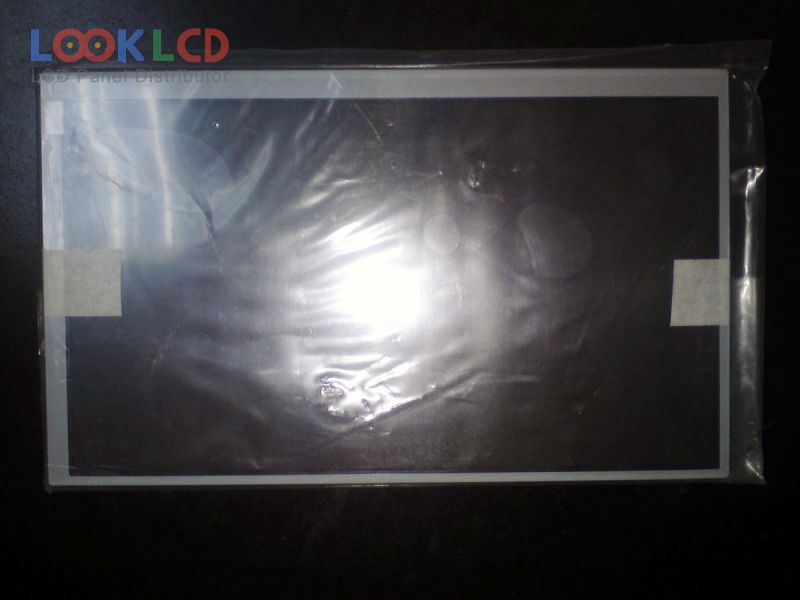

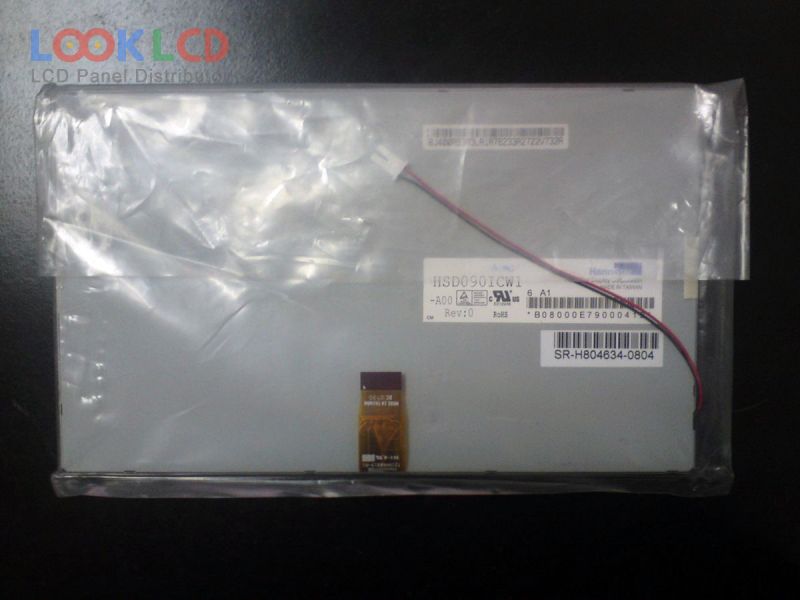

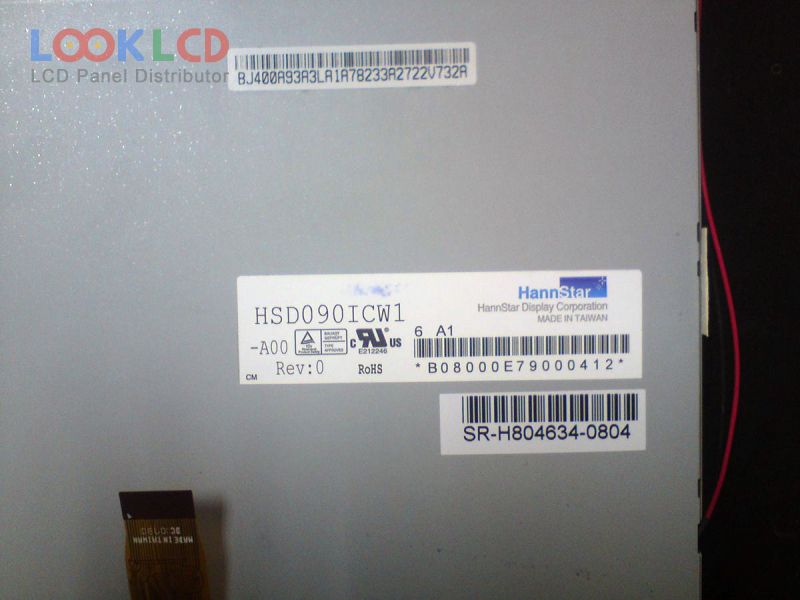

| PartNumber | HSD090ICW1-A00 |
| Marca | HannStar |
| mărimea | 9.0 |
| Aplicație | DPF |
| Rezoluţie | 640×234 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 500:1 |
| Culori | |
| Iluminare de fundal | WLED |
| Interfață | Analog |
| marca panoului | HannStar |
| model de panou | HSD090ICW1-A00 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 9.0 inch |
| rezoluţie | 640(RGB)×234 |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 197.76×111.735 mm |
| contur | 210.7×126.4×4.25 mm |
| suprafaţă | |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | , CIE193145% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/65/65 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 3S8PWLEDWithout Driver |
| interfață de semnal | TFT Specific Analog RGB, 26 pins |
| tensiune de intrare | 3.3/5/15/-10V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplicarea | DPF |
| AA090ME01 | Mitsubishi | 9.0 | 800×480 |
| AT090TN23 | Innolux | 9.0 | 1280×800 |
| ED090NA-01H | Innolux | 9.0 | 1280×800 |
| HSD090ICW1-A00 | HannStar | 9.0 | 640×234 |
| HSD090IDW1-A00 | HannStar | 9.0 | 800×480 |
| LQ090Y3DG01A | SHARP | 9.0 | 800×480 |
| LTA090B400F | TOSHIBA | 9.0 | 800×480 |
| NL8048BC24-09D | NLT | 9.0 | 800×480 |
| NL8048BC24-12 | NLT | 9.0 | 800×480 |
| TX23D12VM0CAA | KOE | 9.0 | 800×480 |
| A080SN03 V0 | AUO | 8.0 | 800×600 |
| CLAA080LA0BCW | CPT | 8.0 | 800×480 |
| HSD070IDW1-A20 | HannStar | 7.0 | 800×480 |
| HSD070ISN1-D00 | HannStar | 7.0 | 800×600 |
| HSD100IFW1-C01 | HannStar | 10.1 | 1024×600 |
| HSD101PFW2-B00 | HannStar | 10.1 | 1024×600 |
| LQ085Y3DG12 | SHARP | 8.5 | 800×480 |
| LQ090Y3DG01 | SHARP | 9.0 | 800×480 |
| LTE700WQ-F05 | Samsung | 7.0 | 480×234 |
| TR-LM7WR3PS | Panasonic | 7.0 | 480×234 |
