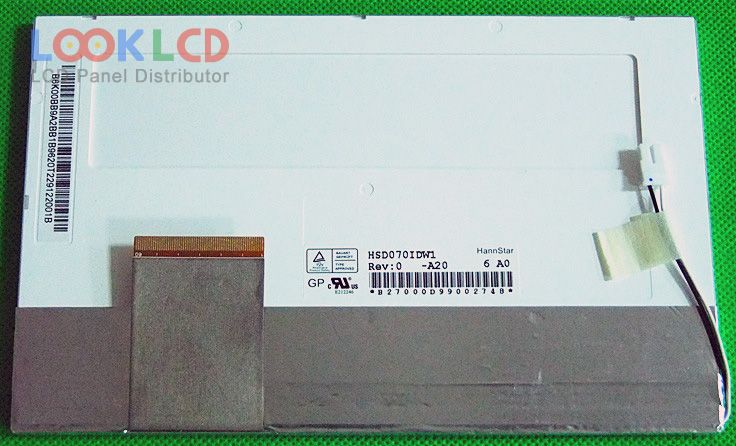

| PartNumber | HSD070IDW1-A20 |
| Marca | HannStar |
| mărimea | 7.0 |
| Aplicație | DPF |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 500:1 |
| Culori | 262K/16.2M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | HannStar |
| model de panou | HSD070IDW1-A20 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 153.6×86.64 mm |
| contur | 165×104×5.4 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K/16.2M (6-bit / 6-bit + FRC) |
| timp de raspuns | 5/20 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 3S7PWLEDWithout Driver |
| interfață de semnal | TTL (1 ch, 6/8-bit), 60 pins |
| tensiune de intrare | 3.0/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplicarea | DPF |
