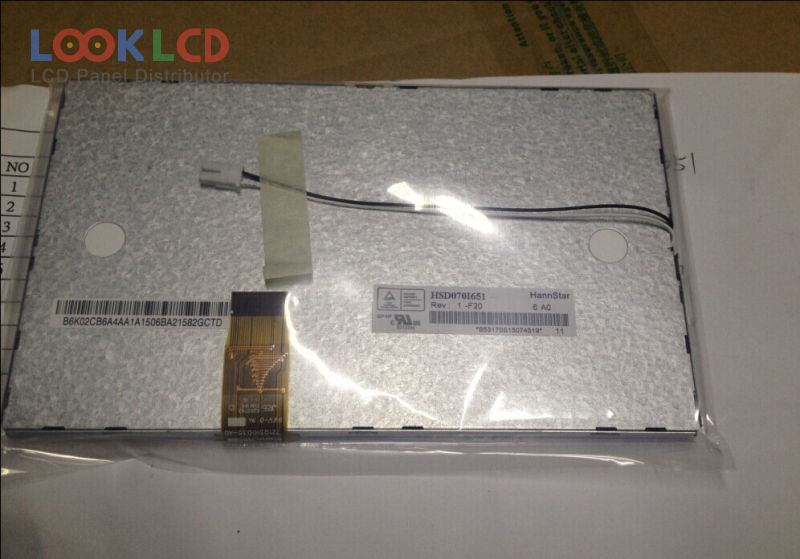

| PartNumber | HSD070I651-F20 |
| Marca | HannStar |
| mărimea | 7.0 |
| Aplicație | VDP |
| Rezoluţie | 480×234 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 500:1 |
| Culori | Full color |
| Iluminare de fundal | WLED |
| Interfață | Analog |
| marca panoului | HannStar |
| model de panou | HSD070I651-F20 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 480(RGB)×234 |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 154.08×86.58 mm |
| contur | 164.9×100×6 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | Full color |
| timp de raspuns | 5/20 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/65/65 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 3S5PWLEDWithout Driver |
| interfață de semnal | TFT Specific Analog RGB, 26 pins |
| tensiune de intrare | 3.3/5.0/15/-10V (Typ.)(DVDD/VGH/VGL) |
| aplicarea | VDP |
