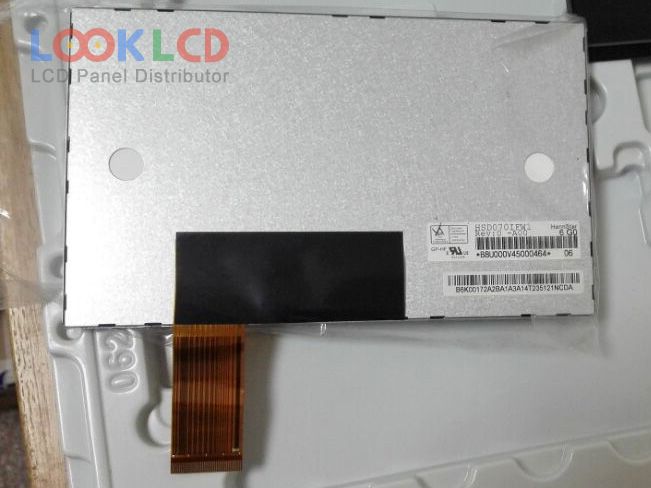

| PartNumber | HSD070IFW1-A00 |
| Marca | HannStar |
| mărimea | 7.0 |
| Aplicație | CNS |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 600 |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | HannStar |
| model de panou | HSD070IFW1-A00 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 153.6×86.64 mm |
| contur | 164.9×100×7.3 mm |
| suprafaţă | Antiglare |
| luminozitatea | 600 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193150% |
| timp de raspuns | 4/12 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/80/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 8-bit), 40 pins |
| tensiune de intrare | 3.3/9.5/18/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplicarea | CNS |
| HSD070I651-C02 | HannStar | 7.0 | 480×234 |
| HSD070I651-F20 | HannStar | 7.0 | 480×234 |
| HSD070IDW1-A00 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A20 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A21 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A30 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-D00 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-E11 | HannStar | 7.0 | 800×480 |
| HSD070IFW1-A00 | HannStar | 7.0 | 1024×600 |
| HSD070IFW1-B00 | HannStar | 7.0 | 1024×600 |
| 70WVW1A | SII | 7.0 | 800×480 |
| C065GW04 V1 | AUO | 6.5 | 400×240 |
| C070VTN02.0 | AUO | 7.0 | 800×480 |
| CLAA061LA0BCW | CPT | 6.1 | 800×480 |
| DLC0700BZG-7 | Other | 7.0 | 800×480 |
| DLC1010GIG | Other | 10.1 | 1280×800 |
| LQ042T5DZ01A | SHARP | 4.2 | 480×272 |
| LQ070T5GC01 | SHARP | 7.0 | |
| LQ070Y5DG20 | SHARP | 7.0 | 800×480 |
| P070BAG-CM1 | Innolux | 7.0 | 1024×600 |
