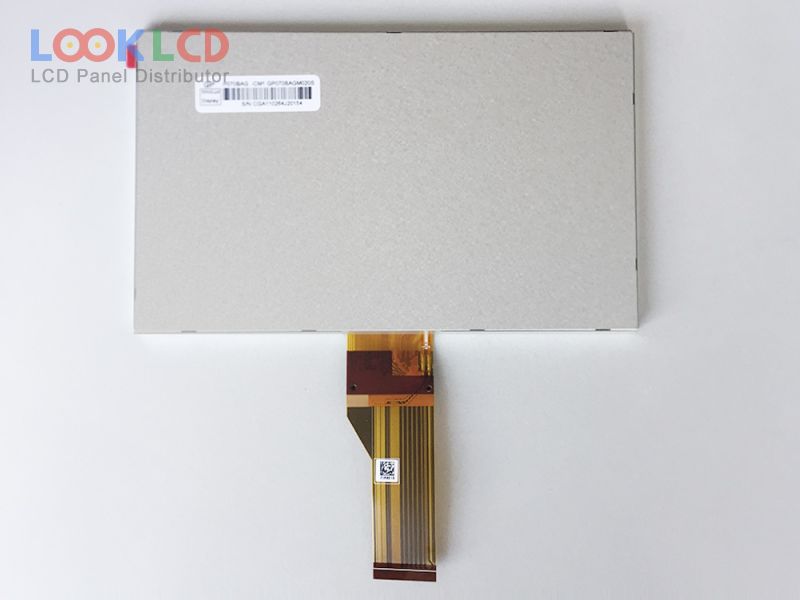

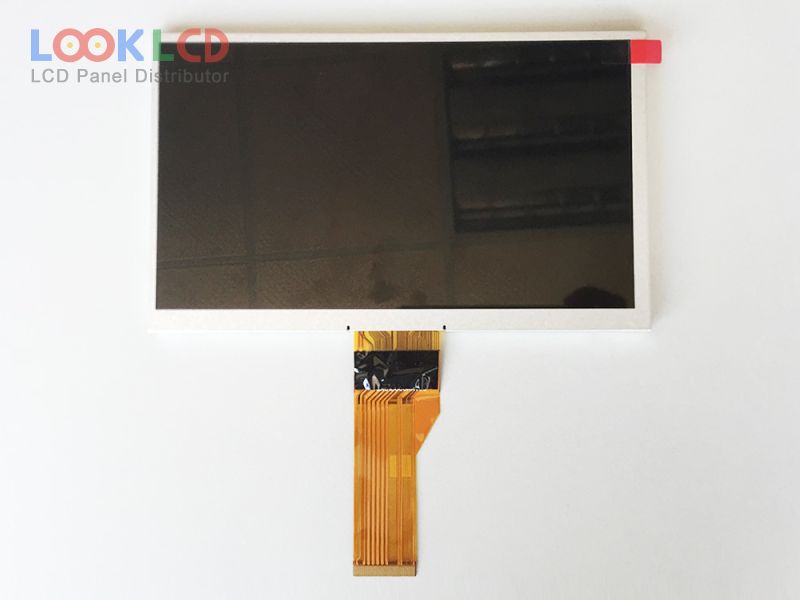

| PartNumber | P070BAG-CM1 |
| Marca | Innolux |
| mărimea | 7.0 |
| Aplicație | CNS |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 500 |
| CR | 800:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | INNOLUX |
| model de panou | P070BAG-CM1 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 154.214×85.92 mm |
| contur | 164.9×100×5.1 mm |
| suprafaţă | Hard coating |
| luminozitatea | 500 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Dithering), CIE193170% |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 40 pins |
| tensiune de intrare | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplicarea | CNS |
