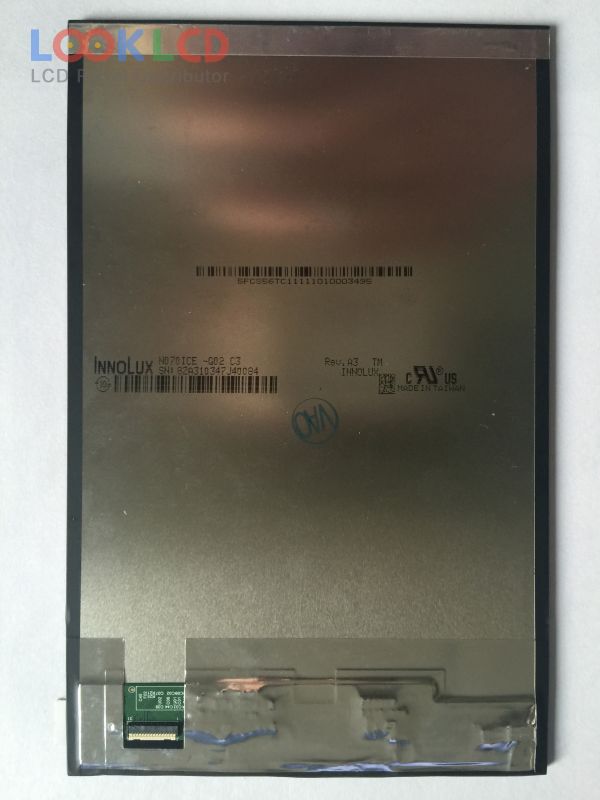

| PartNumber | N070ICE-G02 Rev.C3 |
| Marca | Innolux |
| mărimea | 7.0 |
| Aplicație | PAD |
| Rezoluţie | 800×1280 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | INNOLUX |
| model de panou | N070ICE-G02 Rev.C3 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×1280 , WXGA |
| modul de afișare | AAS, Normally Black, Transmissive |
| Zonă activă | 94.2×150.72 mm |
| contur | 103.5×162.22×4.51 mm |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193160% |
| timp de raspuns | 11/9 (Typ.)(Tr/Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S6PWLEDWithout Driver |
| interfață de semnal | MIPI (4 data lanes), 31 pins |
| tensiune de intrare | 1.8/3.3V (Typ.)(VDDI/VCI) |
| aplicarea | PAD |
