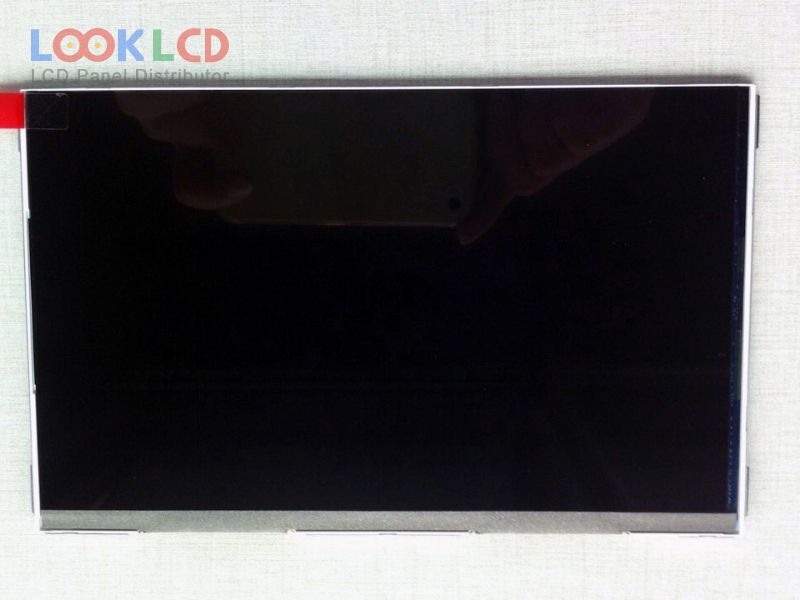

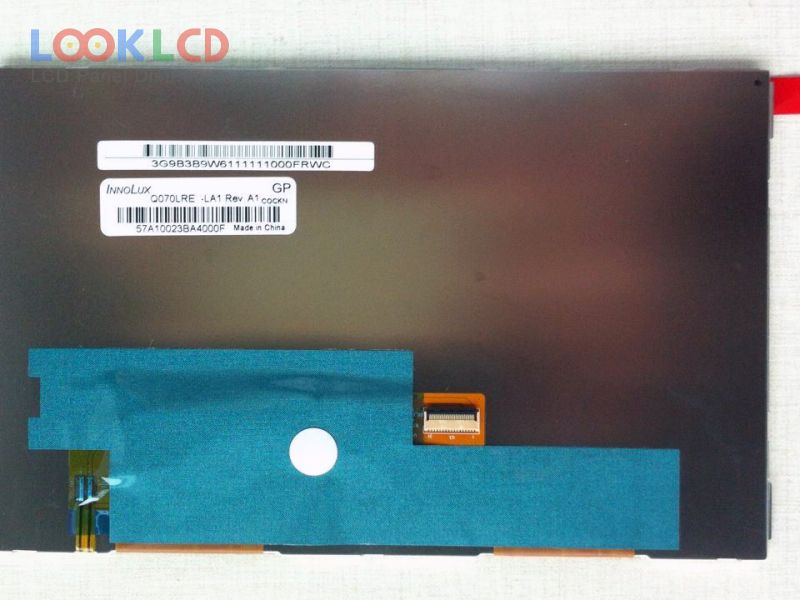

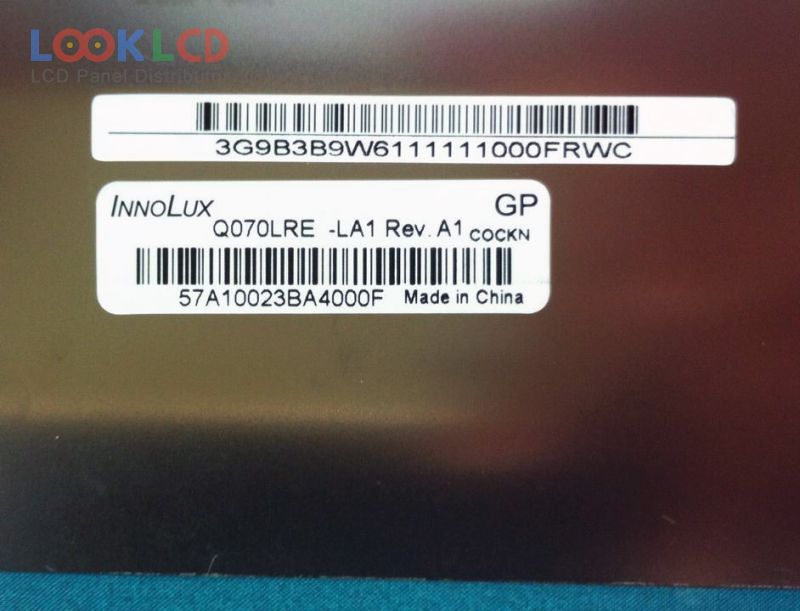

| PartNumber | Q070LRE-LA1 |
| Marca | Innolux |
| mărimea | 7.0 |
| Aplicație | PAD |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 700:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CHIMEI INNOLUX |
| model de panou | Q070LRE-LA1 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | IPS, Normally Black, Transmissive |
| Zonă activă | 153.6×90 mm |
| contur | 164.1×102.6×3.25 mm |
| suprafaţă | Glare (Haze 0%) |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193150% |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4S5PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 8-bit), 31 pins |
| tensiune de intrare | 3.7V (Typ.) |
| aplicarea | PAD |
