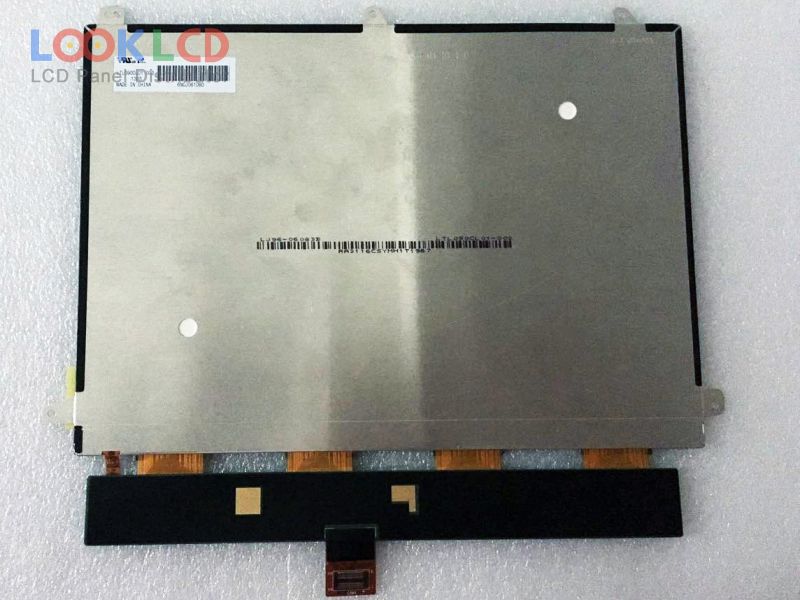

| PartNumber | LTL090CL01-002 |
| Marca | Samsung |
| mărimea | 9.0 |
| Aplicație | PAD |
| Rezoluţie | 1920×1280 |
| Compoziţie | LCM |
| Luminozitate | |
| CR | 800:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | SAMSUNG |
| model de panou | LTL090CL01-002 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 9.0 inch |
| rezoluţie | 1920(RGB)×1280 |
| modul de afișare | PLS, Normally Black, Transmissive |
| Zonă activă | 190.08×126.72 mm |
| contur | 200.91×141.21×2.73 mm |
| suprafaţă | |
| luminozitatea | |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193150% |
| timp de raspuns | 16 (Typ.)(Tr+Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLED |
| interfață de semnal | MIPI (4 data lanes), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
