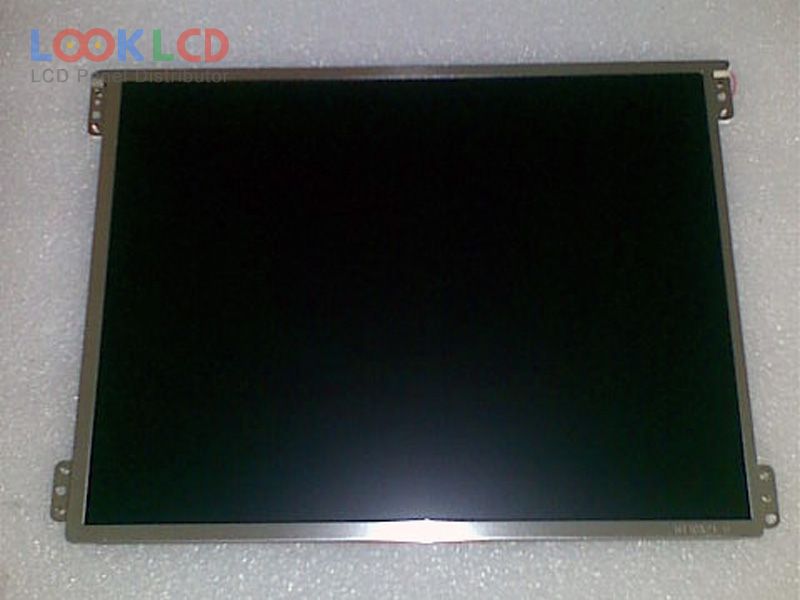

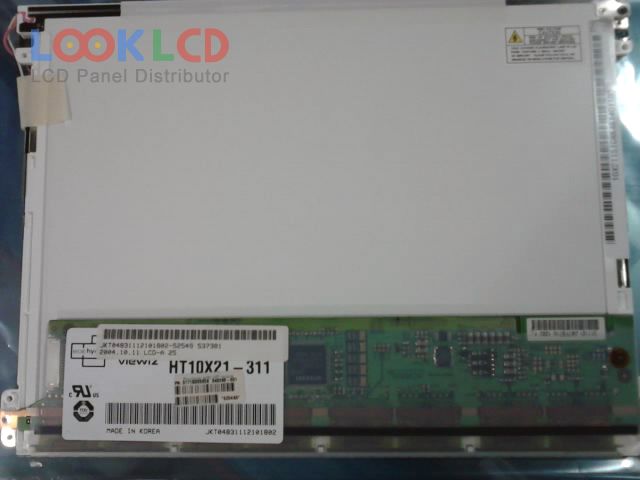

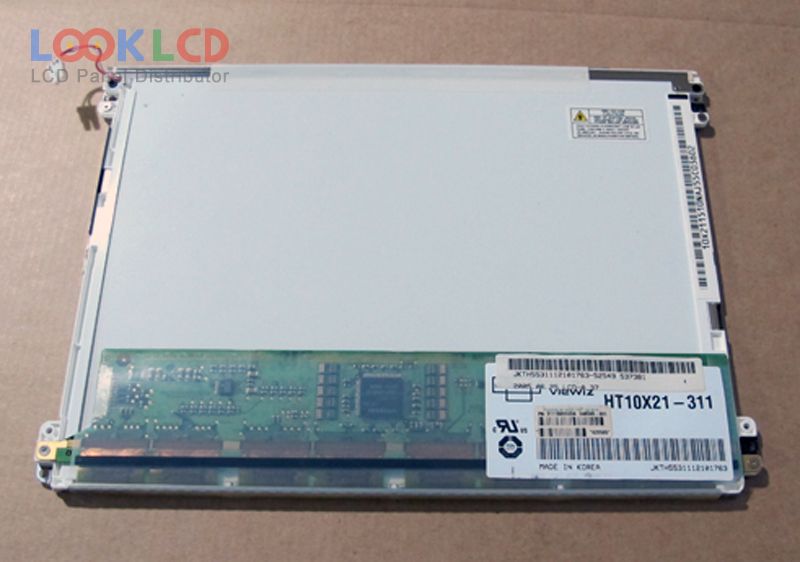

| PartNumber | HT10X21-311 |
| Marca | HYDIS |
| mărimea | 10.4 |
| Aplicație | PAD |
| Rezoluţie | 1024×768 |
| Compoziţie | LCM |
| Luminozitate | 170 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | BOE HYDIS |
| model de panou | HT10X21-311 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.4 inch |
| rezoluţie | 1024(RGB)×768 , XGA |
| modul de afișare | FFS, Normally Black, Transmissive |
| Zonă activă | 210.4×157.8 mm |
| contur | 238.6×173.2 mm |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| luminozitatea | 170 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 40 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 14 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
