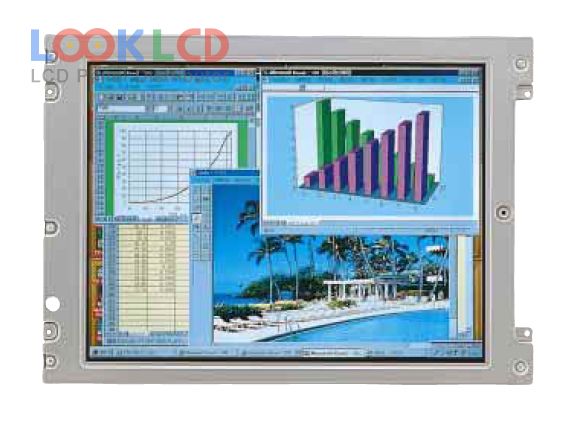

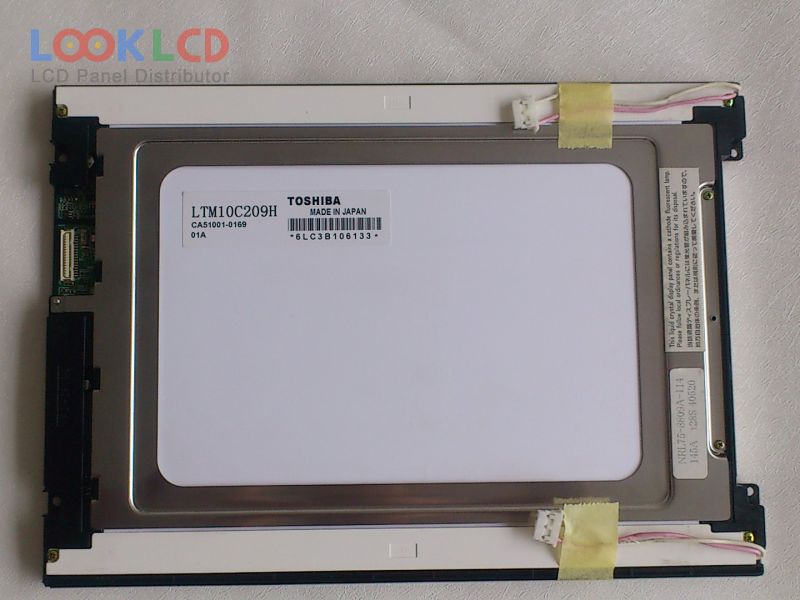

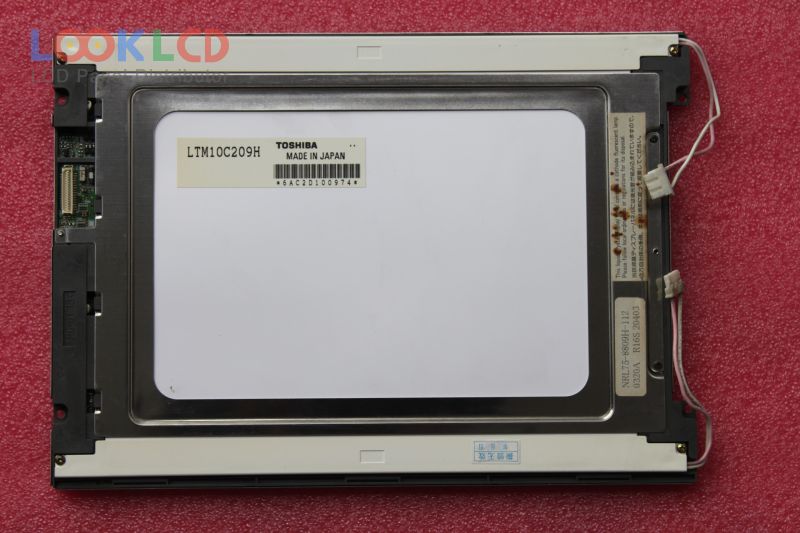

| PartNumber | LTM10C209H |
| Marca | TOSHIBA |
| mărimea | 10.4 |
| Aplicație | IA |
| Rezoluţie | 640×480 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 250:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | TOSHIBA |
| model de panou | LTM10C209H 2 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.4 inch |
| rezoluţie | 640(RGB)×480 , VGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 211.2×158.4 mm |
| contur | 265×188.8×12 mm |
| suprafaţă | |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 250:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 50/50 (Max.)(Tr/Td) |
| unghi de vedere | |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | CMOS (1 ch, 6-bit), 31 pins |
| tensiune de intrare | 5.0V (Typ.)(VDD) |
| aplicarea | IA |
| LTM104V3-100 | Samsung | 10.4 | 640×480 |
| LTM10C209AF | TOSHIBA | 10.4 | 640×480 |
| LTM10C210 | TOSHIBA | 10.4 | 640×480 |
| LTM10C306Y | TOSHIBA | 10.4 | 1024×768 |
| LTM10C313S | TOSHIBA | 10.4 | 1024×768 |
| LTM10C321N | TOSHIBA | 10.4 | 1024×768 |
| LTM10C327F | TOSHIBA | 10.4 | 1024×768 |
| LTM10C348F | TOSHIBA | 10.4 | 800×600 |
| LTM10C348P | TOSHIBA | 10.4 | 800×600 |
| LTM10C353 | TOSHIBA | 10.0 | 1280×600 |
| AA084VC03 | Mitsubishi | 8.4 | 640×480 |
| AC121SA02 | Mitsubishi | 12.1 | 800×600 |
| G150XTN05.0 | AUO | 15.0 | 1024×768 |
| G154IJE-L02 | Innolux | 15.4 | 1280×800 |
| HGS256641-Y-EH-LV | Other | 3.1 | 256×64 |
| LM238WR2-SLA1 | LG Display | 23.8 | 3840×2160 |
| LM6Q35 | SHARP | 5.5 | 320×240 |
| NL8048BC19-02C | NLT | 7.0 | 800×480 |
| OEL9M0064-Y-E | Other | 2.0 | 128×32 |
| UG-9664HSWAG01 | WiseChip | 0.95 | 96×64 |
