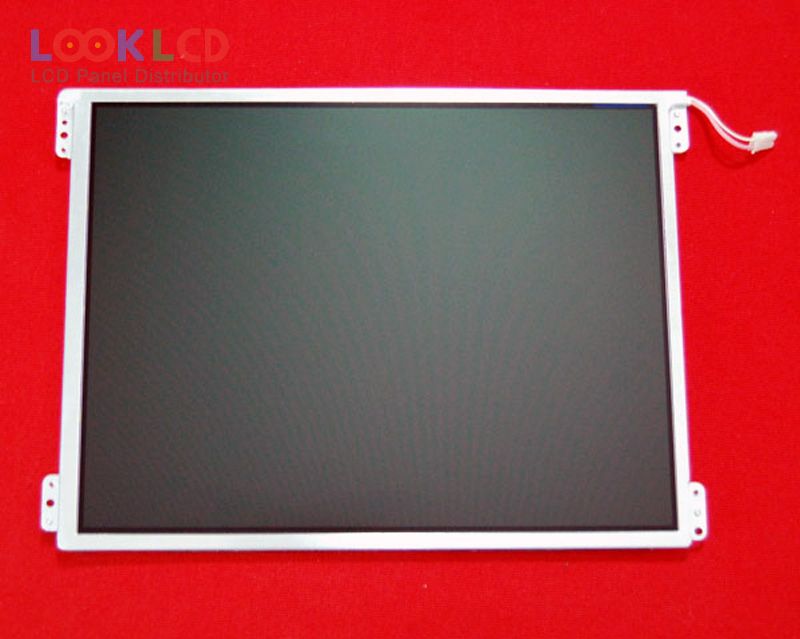

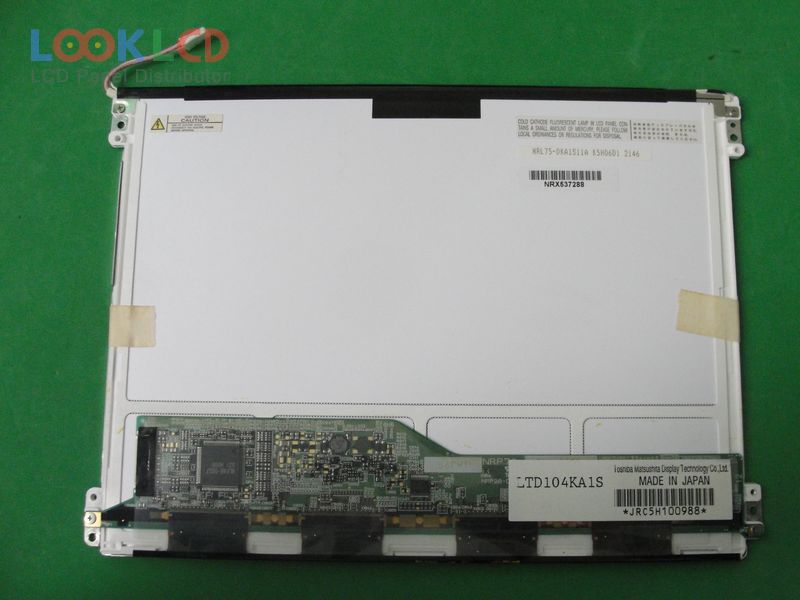

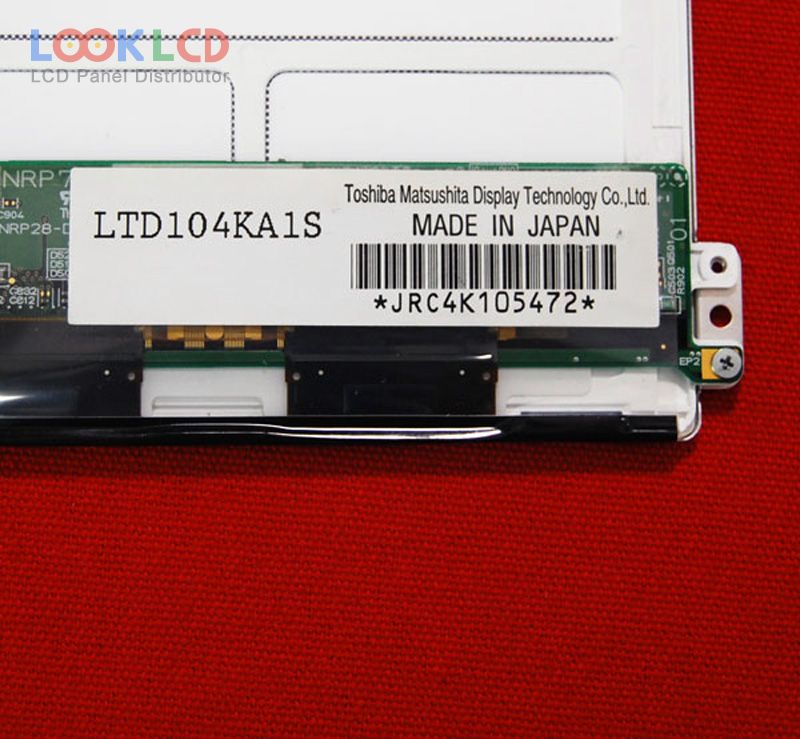

| PartNumber | LTD104KA1S |
| Marca | TOSHIBA |
| mărimea | 10.4 |
| Aplicație | NBPC |
| Rezoluţie | 1024×768 |
| Compoziţie | LCM |
| Luminozitate | 170 |
| CR | 250:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | Toshiba Matsushita |
| model de panou | LTD104KA1S |
| tip panou | LTPS TFT-LCD , LCM |
| dimensiunea panoului | 10.4 inch |
| rezoluţie | 1024(RGB)×768 , XGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 210.4×157.8 mm |
| contur | 238.6×173.2 mm |
| suprafaţă | |
| luminozitatea | 170 cd/m² (Typ.) |
| Raport de contrast | 250:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 50/50 (Max.)(Tr/Td) |
| unghi de vedere | 45/45/20/30 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 14 pins |
| tensiune de intrare | 3.3V (Typ.) |
| rohs: | |
| aplicarea | NBPC |
| LTD104C11S | TOSHIBA | 10.4 | 640×480 |
| LTD104C11U | TOSHIBA | 10.4 | 640×480 |
| LTD104C11Z | TOSHIBA | 10.4 | 640×480 |
| LTD104EA5F | TOSHIBA | 10.4 | 1024×768 |
| LTD104EA5S | TOSHIBA | 10.4 | 1024×768 |
| LTD104EA5W | TOSHIBA | 10.4 | 1024×768 |
| LTD104EDQP | TOSHIBA | 10.4 | 1024×768 |
| LTD104EDZS | TOSHIBA | 10.4 | 1024×768 |
| LTD104KA1S | TOSHIBA | 10.4 | 1024×768 |
| LTD106EXXF | TOSHIBA | 10.6 | 1280×768 |
| B154EW02 V6 | AUO | 15.4 | 1280×800 |
| IAQX10N | IDTech | 15.0 | 2048×1536 |
| LP101WH1-TLA3 | LG Display | 10.1 | 1366×768 |
| LP133WH2-TLM4 | LG Display | 13.3 | 1366×768 |
| LP156WHU-TLAA | LG Display | 15.6 | 1366×768 |
| LTN133AT03-001 | Samsung | 13.3 | 1280×800 |
| N121I7-L01 | Innolux | 12.1 | 1280×800 |
| N133BGE-LB1 | Innolux | 13.3 | 1366×768 |
| N150P3-L01 | IDTech | 15.0 | 1400×1050 |
| N184H4-L04 | Innolux | 18.4 | 1920×1080 |
