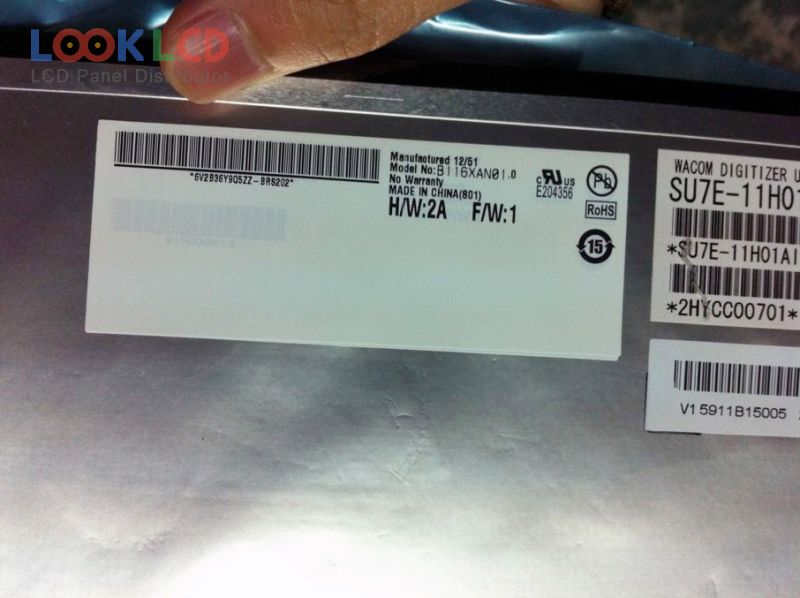

| PartNumber | B116XAN01.0 |
| Marca | AUO |
| mărimea | 11.6 |
| Aplicație | PAD |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 700 |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | AUO |
| model de panou | B116XAN01.0 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 11.6 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | AHVA, Normally Black, Transmissive |
| Zonă activă | 256.125×144 mm |
| contur | 267.17×157.31×4.74 mm |
| suprafaţă | |
| luminozitatea | 700 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Min.) |
| culorile afișajului | 16.7M (8-bit), CIE193150% |
| timp de raspuns | 30 (Max.)(Tr+Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 8S6PWLEDWithout Driver |
| interfață de semnal | MIPI (4 data lanes), 45 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
