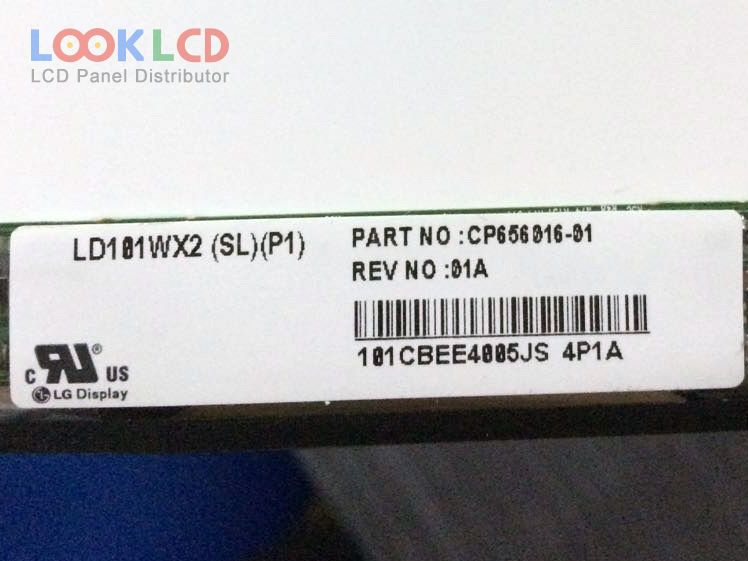

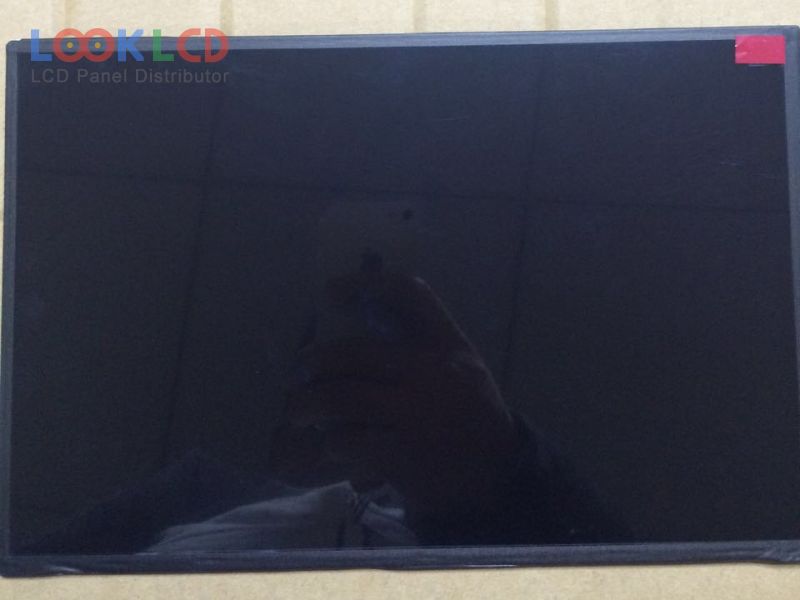

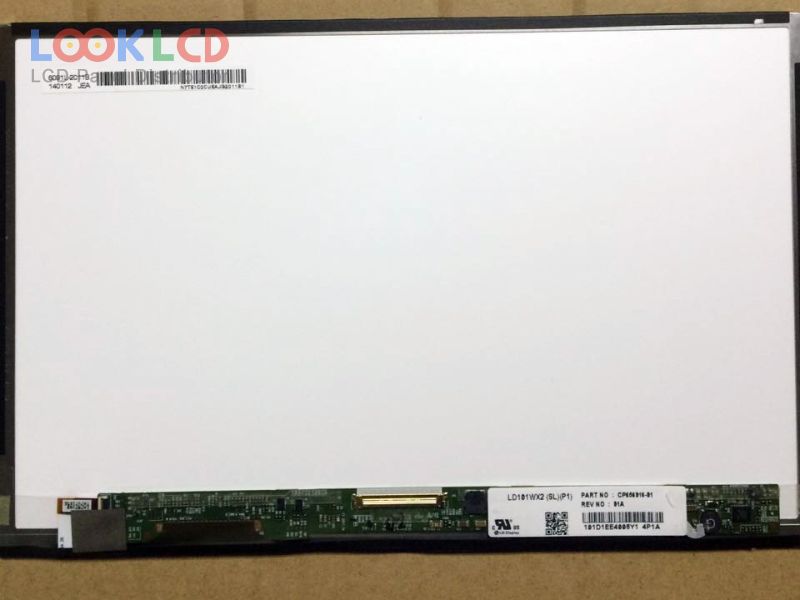

| PartNumber | LD101WX2-SLP1 |
| Marca | LG Display |
| mărimea | 10.1 |
| Aplicație | PAD |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 500:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | LG Display |
| model de panou | LD101WX2-SLP1 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | IPS, Normally Black, Transmissive |
| Zonă activă | 216.96×135.6 mm |
| contur | 229.46×150.2×4.4 mm |
| suprafaţă | Antiglare |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193150% |
| timp de raspuns | 35 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 8-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
| AM-19201200B1TZQW-T00 | AMPIRE | 10.1 | 1920×1200 |
| BA101WS1-100 | BOE | 10.1 | 1024×600 |
| CLAA101WA01A | CPT | 10.1 | 1366×768 |
| G101STN01.2 | AUO | 10.1 | 1024×600 |
| HSD100IFW1-A04 | HannStar | 10.1 | 1024×600 |
| HSD101PWW1-A00-C40 | HannStar | 10.1 | 1280×800 |
| LD101WX2-SLP1 | LG Display | 10.1 | 1280×800 |
| LTL101AL01-W01 | Samsung | 10.1 | 1280×800 |
| M101NWT4 R3 | IVO | 10.1 | 1024×600 |
| N101ICE-G62 | Innolux | 10.1 | 1280×800 |
| B070ATN02.0 | AUO | 7.0 | 600×1024 |
| B101EAN01.3 | AUO | 10.1 | 1280×800 |
| CLAA070NQ01 XN | CPT | 7.0 | 1024×600 |
| EJ070IA-04A | Innolux | 7.0 | 800×1280 |
| LQ104X2LX05B | SHARP | 10.4 | 1024×768 |
| LT070ME05000 | JDI | 7.0 | 1200×1920 |
| LTL097QL01-W01 | Samsung | 9.7 | 2048×1536 |
| LTN097QL01-A02 | Samsung | 9.7 | 2048×1536 |
| N080ICE-GB0 Rev.A0 | Innolux | 8.0 | 800×1280 |
| VVX10F008B00 | Panasonic | 10.1 | 1920×1200 |
