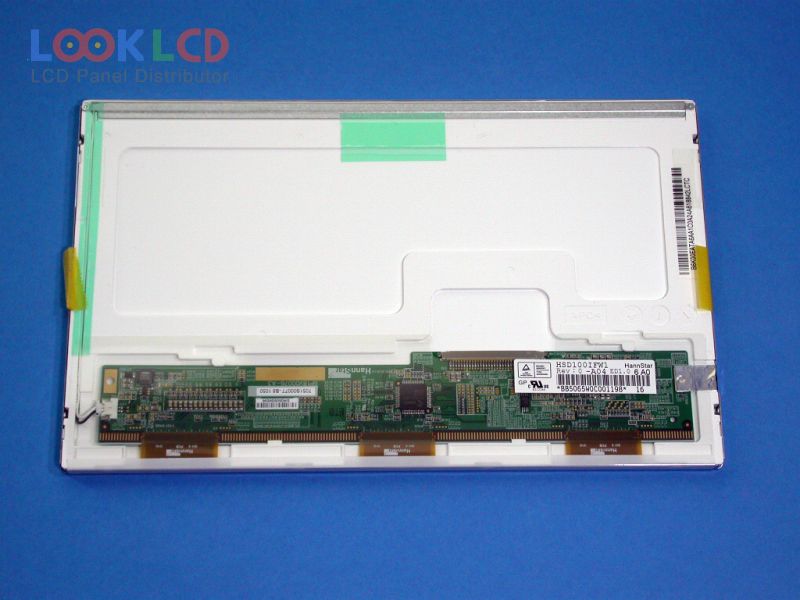

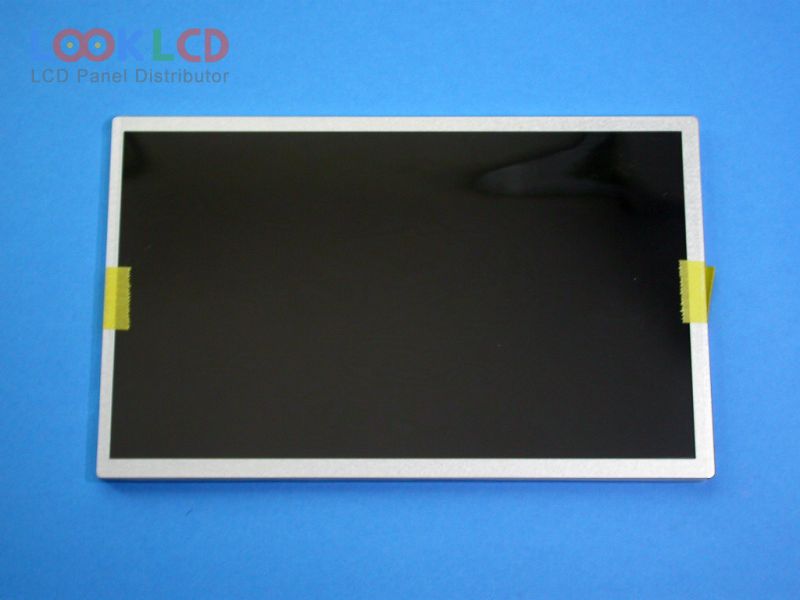

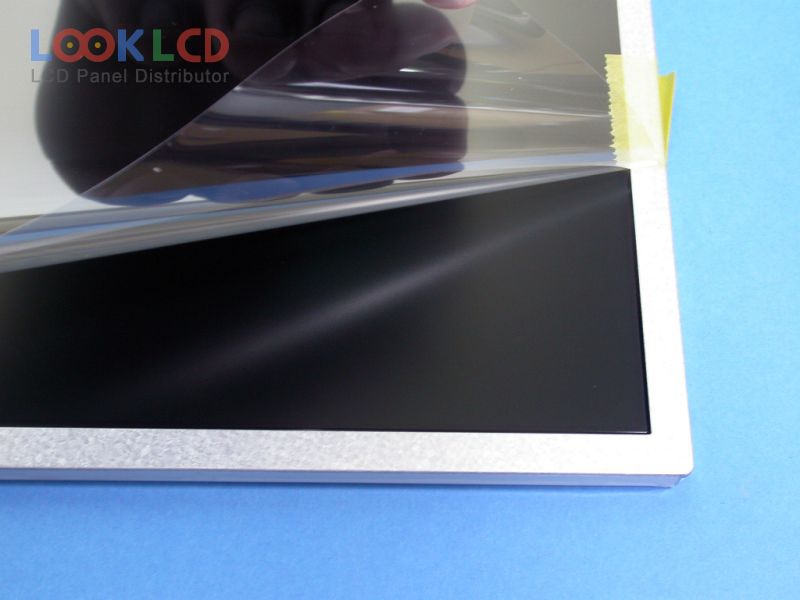

| PartNumber | HSD100IFW1-A04 |
| Marca | HannStar |
| mărimea | 10.1 |
| Aplicație | DPF |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | HannStar |
| model de panou | HSD100IFW1-A04 5 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 220.416×129.15 mm |
| contur | 235×145.8×5.8 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193147% |
| timp de raspuns | 5/20 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | DPF |
| HSD100IFW1-A00 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-A02 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-A04 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-C01 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-F01 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-F03 | HannStar | 10.1 | 1024×600 |
| HSD100IFW3-A00 | HannStar | 10.1 | 1024×600 |
| HSD100IFW4-A00 | HannStar | 10.1 | 1024×600 |
| HSD100IXN1-A00 | HannStar | 10.0 | 1024×768 |
| TT101WSQ-N10 | BOE | 10.1 | 1024×600 |
| A061VW01 V0 | AUO | 6.1 | 800×480 |
| B070ATN01.0 | AUO | 7.0 | 1024×600 |
| CLAA070MA21BW | CPT | 7.0 | 800×600 |
| EJ080NA-05B | Innolux | 8.0 | 800×600 |
| HSD101PFW2-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW3-D00 | HannStar | 10.1 | 1024×600 |
| LQ090Y3DG01A | SHARP | 9.0 | 800×480 |
| LW700AT9309 | Innolux | 7.0 | 800×480 |
| TM070RDH13 | Tianma | 7.0 | 800×480 |
| TM104SDHG30 | Tianma | 10.4 | 800×600 |
