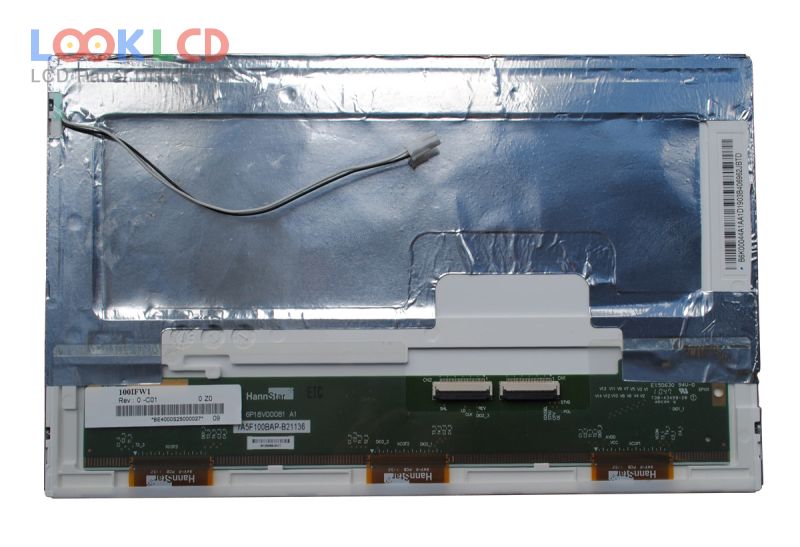

| PartNumber | HSD100IFW1-C01 |
| Marca | HannStar |
| mărimea | 10.1 |
| Aplicație | DPF |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | HannStar |
| model de panou | HSD100IFW1-C01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 220.416×129.15 mm |
| contur | 235×145.8 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193147% |
| timp de raspuns | 5/20 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 3S10PWLEDWithout Driver |
| interfață de semnal | TTL (1 ch, 6-bit), 60 pins |
| tensiune de intrare | 3.3/9.48/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplicarea | DPF |
