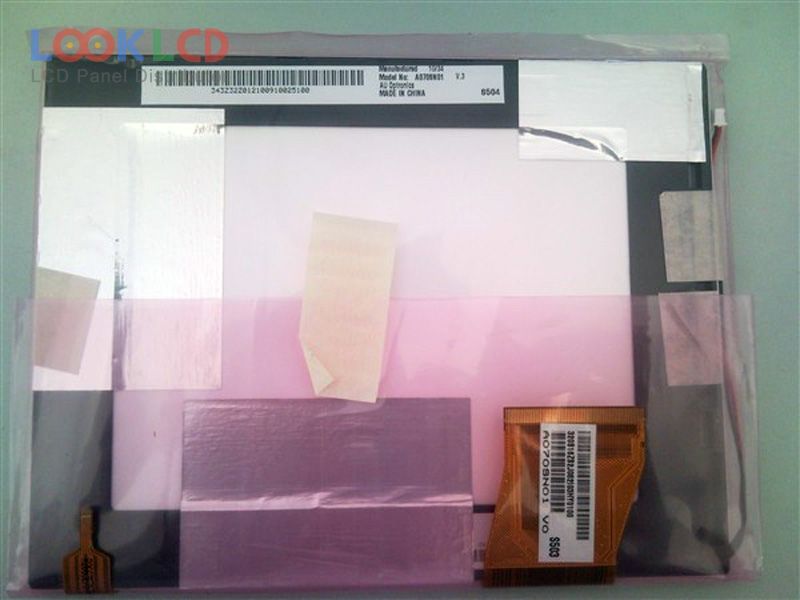

| PartNumber | A070SN01 V3 |
| Marca | AUO |
| mărimea | 7.0 |
| Aplicație | DPF |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 500:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | AUO |
| model de panou | A070SN01 V3 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 141.6×106.2 mm |
| contur | 154×119.2×6.74 mm |
| suprafaţă | Antiglare (Haze 8%), Hard coating (3H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| timp de raspuns | 3/13 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 3S6PWLEDWithout Driver |
| interfață de semnal | TTL (1 ch, 6/8-bit), 60 pins |
| tensiune de intrare | 3.3/11.6/15/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplicarea | DPF |
