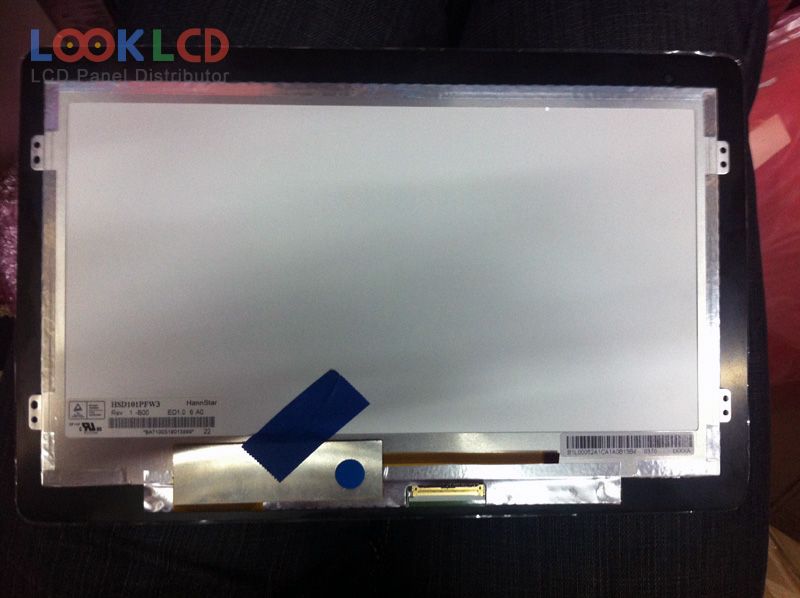

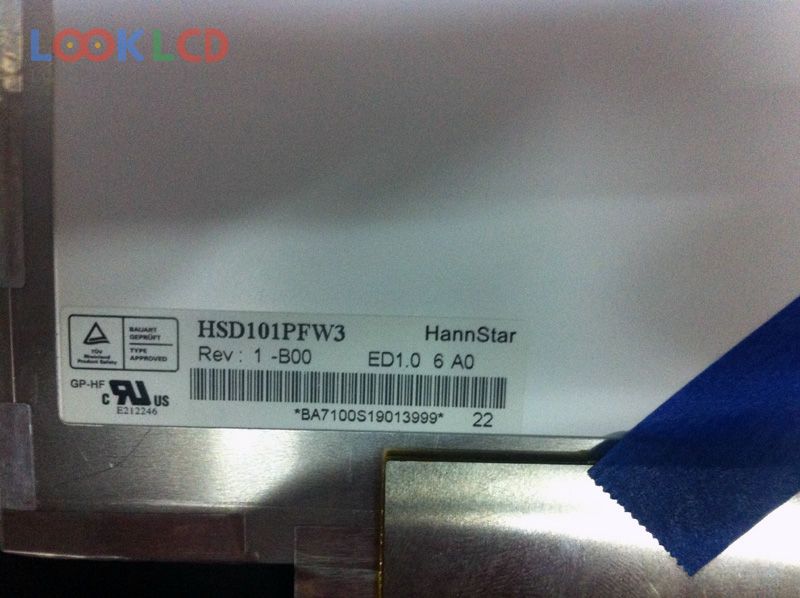

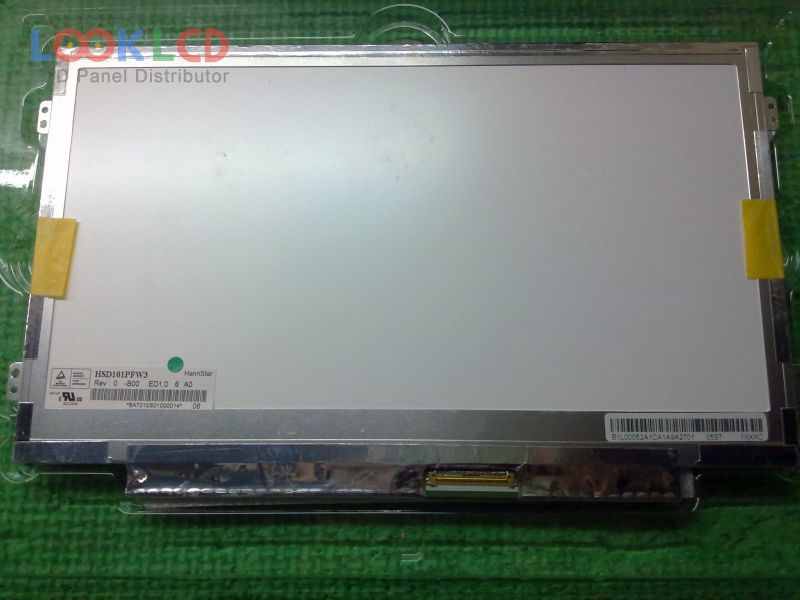

| PartNumber | HSD101PFW3-B00 |
| Marca | HannStar |
| mărimea | 10.1 |
| Aplicație | DPF |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 220 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | HannStar |
| model de panou | HSD101PFW3-B00 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 222.72×125.28 mm |
| contur | 243×146.5×3.6 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 220 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193150% |
| timp de raspuns | 4/12 (Typ.)(Tr/Td) |
| unghi de vedere | 80/70/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | DPF |
