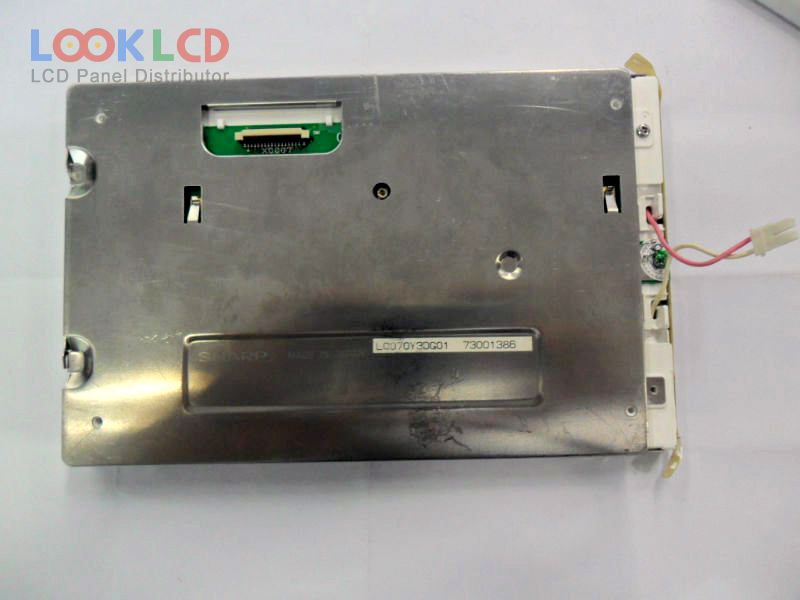

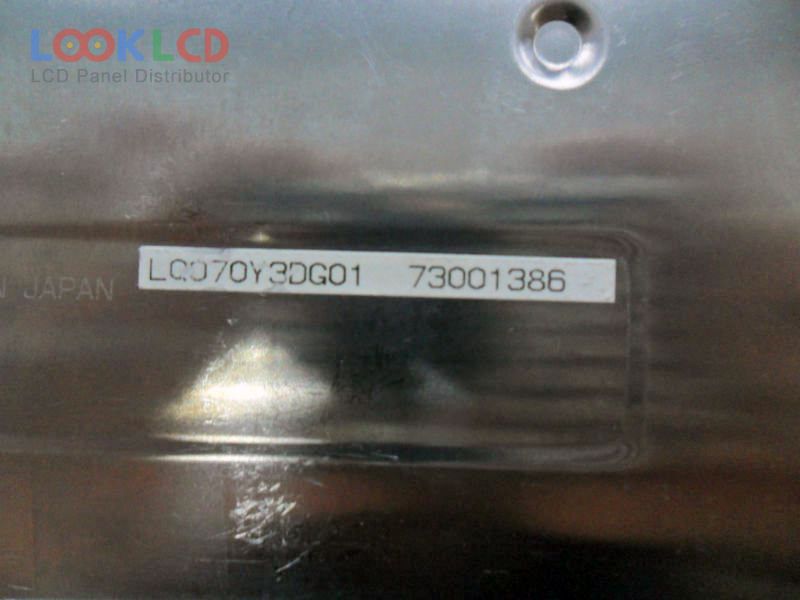

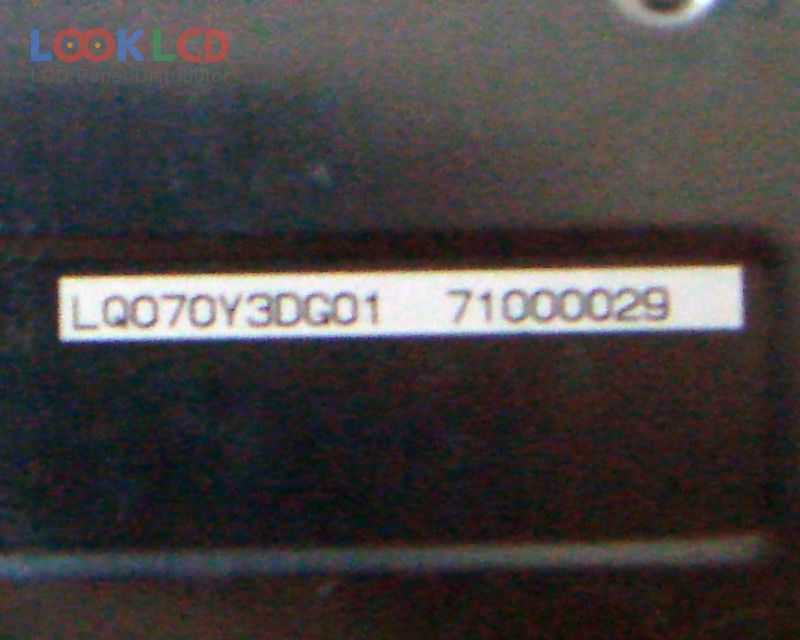

| PartNumber | LQ070Y3DG01 |
| Marca | SHARP |
| mărimea | 7.0 |
| Aplicație | DPF |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 380 |
| CR | 350:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ070Y3DG01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | Transmissive |
| Zonă activă | 152.4×91.44 mm |
| contur | 175×111.5×13.8 mm |
| suprafaţă | |
| luminozitatea | 380 cd/m² (Typ.) |
| Raport de contrast | 350:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | CMOS (1 ch, 6-bit), 32 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DPF |
