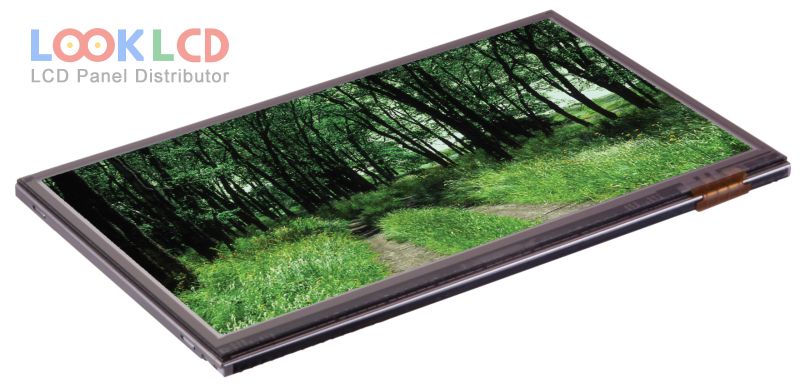

| PartNumber | LQ070Y3DG3A |
| Marca | SHARP |
| mărimea | 7.0 |
| Aplicație | IA |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 300:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ070Y3DG3A |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800×480(RGB) , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 152.4×91.44 mm |
| contur | 163.2×104×6.3 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 300:1 (Min.) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | 35 (Typ.)(Tr+Td) |
| unghi de vedere | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 8S3PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
