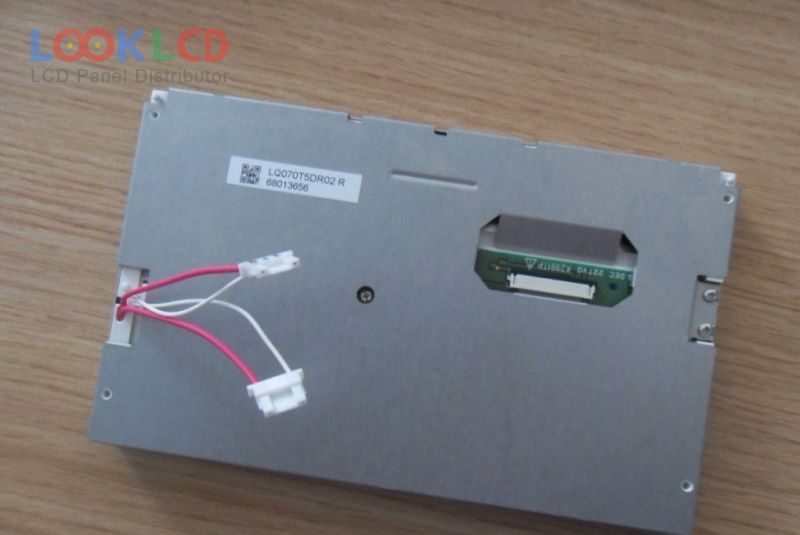

| PartNumber | LQ070T5DR02 |
| Marca | SHARP |
| mărimea | 7.0 |
| Aplicație | CNS |
| Rezoluţie | 480×240 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 100:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ070T5DR02 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 480(RGB)×240 , WQVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 154.08×87 mm |
| contur | 170.1×103.4 mm |
| suprafaţă | Antiglare, Antireflection |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 100:1 (Min.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 30/50 (Typ.)(Tr/Td) |
| unghi de vedere | 65/65/40/65 (Typ.)(CR≥5)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 36 pins |
| tensiune de intrare | 5/10/-10V (Typ.)(VSH/VGH/VGL) |
| rohs: | |
| aplicarea | CNS |
| LQ070M1SX01 | SHARP | 7.0 | 1200×1920 |
| LQ070T3AG02 | SHARP | 7.0 | 480×234 |
| LQ070T5AR01 | SHARP | 7.0 | 480×234 |
| LQ070T5DG30 | SHARP | 7.0 | |
| LQ070T5DR01 | SHARP | 7.0 | 480×240 |
| LQ070T5DR02 | SHARP | 7.0 | 480×240 |
| LQ070T5GC01 | SHARP | 7.0 | |
| LQ070Y3DG02 | SHARP | 7.0 | 800×480 |
| LQ070Y3DG04 | SHARP | 7.0 | 800×480 |
| LQ070Y3LG05 | SHARP | 7.0 | 800×480 |
| 70WVW3A | SII | 7.0 | 800×480 |
| AV080WSM-NW3 | BOE | 8.0 | 1024×600 |
| AV123Z7M-N11 | BOE | 12.3 | 1920×720 |
| CLAA070LD0DCW | CPT | 7.0 | 800×480 |
| FG0700G3DSSWBGL4 | Data Image | 7.0 | 800×480 |
| HSD062IDW1-A02 | HannStar | 6.2 | 800×480 |
| LB070WV1-TD04 | LG Display | 7.0 | 800×480 |
| LQ050T5DG01 | SHARP | 5.0 | 400×240 |
| LQ065T5GG63 | SHARP | 6.5 | 400×234 |
| PW080XU1 | E Ink | 8.0 | 480×220 |
