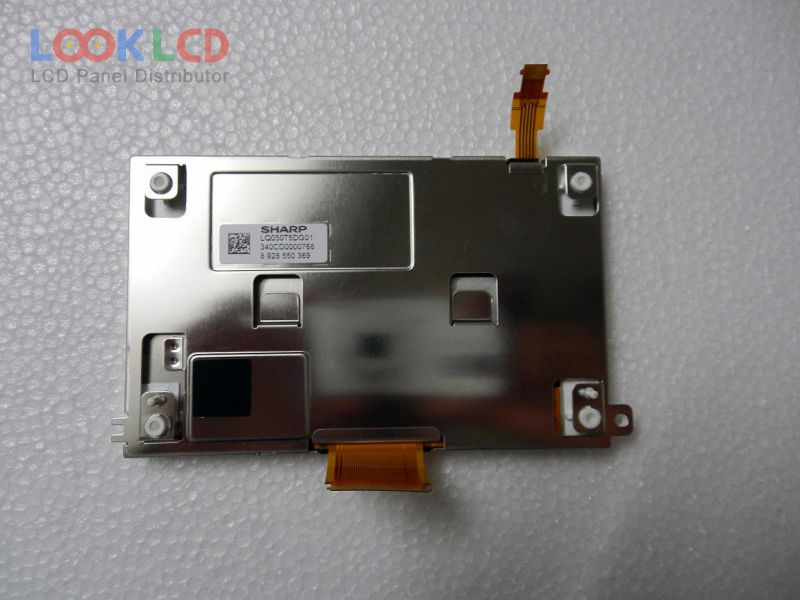

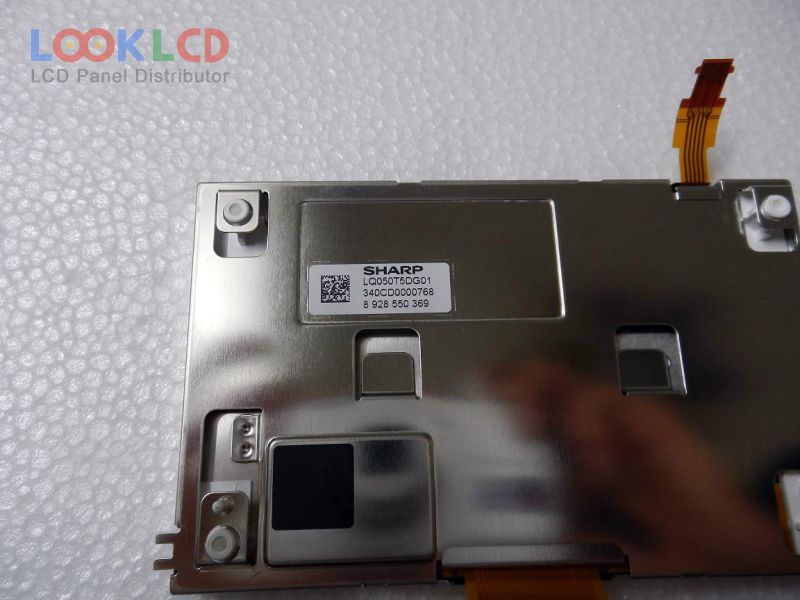

| PartNumber | LQ050T5DG01 |
| Marca | SHARP |
| mărimea | 5.0 |
| Aplicație | CNS |
| Rezoluţie | 400×240 |
| Compoziţie | LCM |
| Luminozitate | 600 |
| CR | 800:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ050T5DG01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.0 inch |
| rezoluţie | 400(RGB)×240 , WQVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 108×64.8 mm |
| contur | 120.6×75.2×16.8 mm |
| suprafaţă | Antiglare |
| luminozitatea | 600 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193150% |
| timp de raspuns | 35 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4S2PWLEDWithout Driver |
| interfață de semnal | CMOS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3/9.0V (Typ.)(VCC/VDC) |
| aplicarea | CNS |
