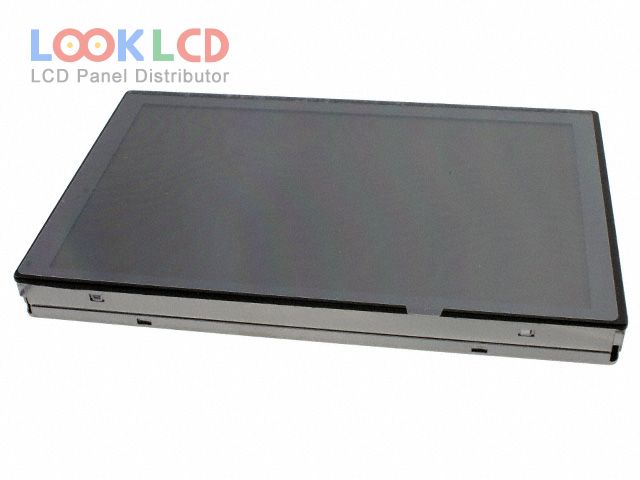

| PartNumber | LQ065Y5DZ01 |
| Marca | SHARP |
| mărimea | 6.5 |
| Aplicație | CNS |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 675 |
| CR | 1700:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ065Y5DZ01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 6.5 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | ASV, Normally Black, Transmissive |
| Zonă activă | 141.6×84.96 mm |
| contur | 161.8×100.6×17.5 mm |
| suprafaţă | |
| luminozitatea | 675 cd/m² (Typ.) |
| Raport de contrast | 1700:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | 15/5 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | Parallel RGB (1 ch, 4-bit), 68 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | CNS |
