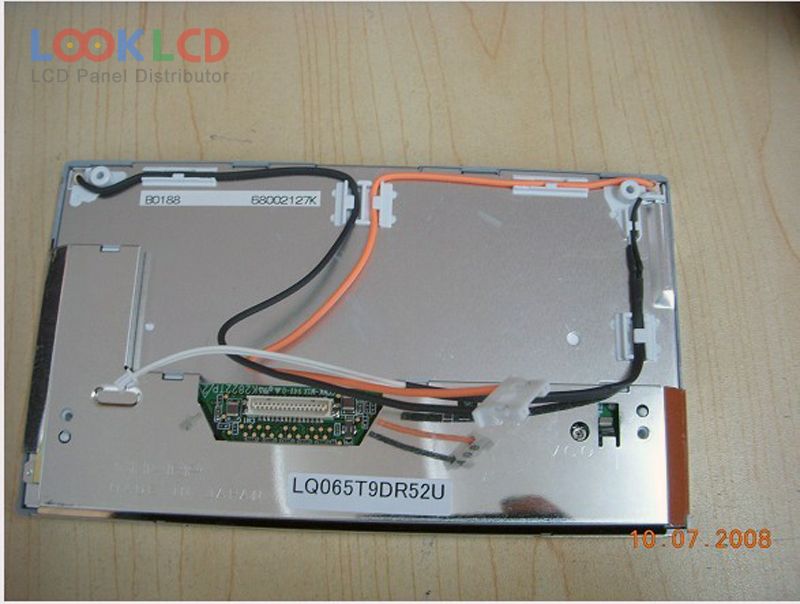

| PartNumber | LQ065T9DR52U |
| Marca | SHARP |
| mărimea | 6.5 |
| Aplicație | CNS |
| Rezoluţie | 400×240 |
| Compoziţie | LCM |
| Luminozitate | 220 |
| CR | 60:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ065T9DR52U |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 6.5 inch |
| rezoluţie | 400(RGB)×240 , WQVGA |
| modul de afișare | TN, Normally White, Transflective |
| Zonă activă | 143.4×79.326 mm |
| contur | 155×89.2 mm |
| suprafaţă | Antiglare, Antireflection |
| luminozitatea | 220 cd/m² (Typ.) |
| Raport de contrast | 60:1 (Min.)(Transmissive)5:1 (Typ.)(Reflective) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 10/25 (Typ.)(Tr/Td) |
| unghi de vedere | 50/50/40/45 (Typ.)(CR≥5)(L/R/U/D) |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 31 pins |
| tensiune de intrare | 5/10/-10V (Typ.)(VSH/VGH/VGL) |
| aplicarea | CNS |
