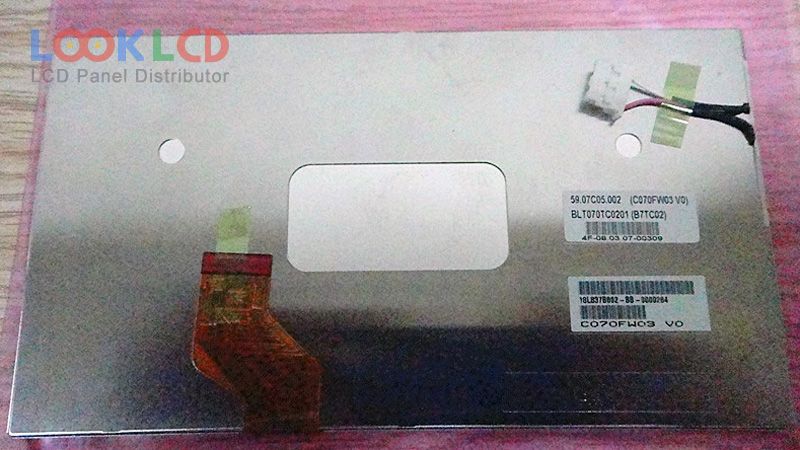

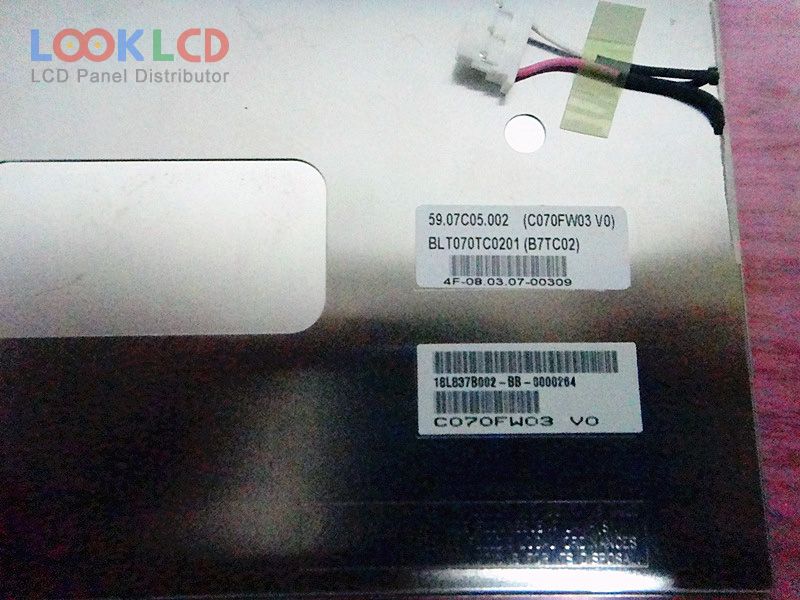

| PartNumber | C070FW03 V0 |
| Marca | AUO |
| mărimea | 7.0 |
| Aplicație | CNS |
| Rezoluţie | 480×234 |
| Compoziţie | LCM |
| Luminozitate | 475 |
| CR | 300:1 |
| Culori | |
| Iluminare de fundal | CCFL |
| Interfață | Analog |
| marca panoului | AUO |
| model de panou | C070FW03 V0 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 480(RGB)×234 |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 156.24×82.368 mm |
| contur | 167×93 mm |
| suprafaţă | Antiglare (Haze 25%) |
| luminozitatea | 475 cd/m² (Typ.) |
| Raport de contrast | 300:1 (Typ.) |
| culorile afișajului | , CIE193172% |
| timp de raspuns | 15/20 (Typ.)(Tr/Td) |
| unghi de vedere | 60/60/45/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | TFT Specific Analog RGB, 30 pins |
| tensiune de intrare | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplicarea | CNS |
| A070VW08 V0 | AUO | 7.0 | 800×480 |
| C070FW01 V0 | AUO | 7.0 | 480×234 |
| C070FW02 V0 | AUO | 7.0 | 480×234 |
| C070FW02 V2 | AUO | 7.0 | 480×234 |
| C070FW03 V0 | AUO | 7.0 | 480×234 |
| DLC0700FDG-T-6 | Other | 7.0 | 800×480 |
| DLC0700OZG-T-1 | Other | 7.0 | 800×480 |
| G070VW01 V0 | AUO | 7.0 | 800×480 |
| LB070WV1-TD07 | LG Display | 7.0 | 800×480 |
| NL8048AC19-13 | NLT | 7.0 | 800×480 |
| AT062TN12 | Innolux | 6.2 | |
| C070VVN03.3 | AUO | 7.0 | 800×480 |
| C070VW04 V7 | AUO | 7.0 | 800×480 |
| C102EVN01.0 | AUO | 10.2 | 1280×720 |
| LQ070T5AR01 | SHARP | 7.0 | 480×234 |
| LQ080T5GG01B | SHARP | 8.0 | 480×234 |
| LS080HT111 | Innolux | 8.0 | 800×600 |
| NL3224AC35-06 | NLT | 5.5 | 320×240 |
| PW100XS1 | E Ink | 10.0 | 640×468 |
| PW100XS5 | E Ink | 10.0 | 640×468 |
