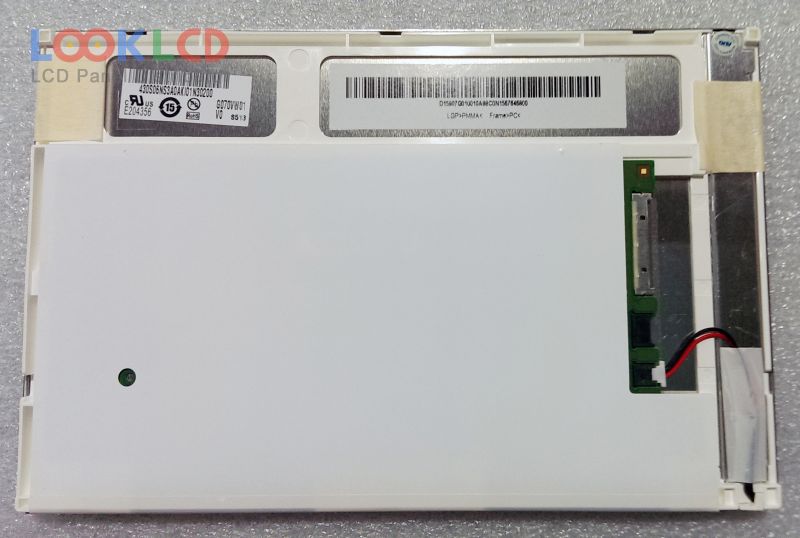

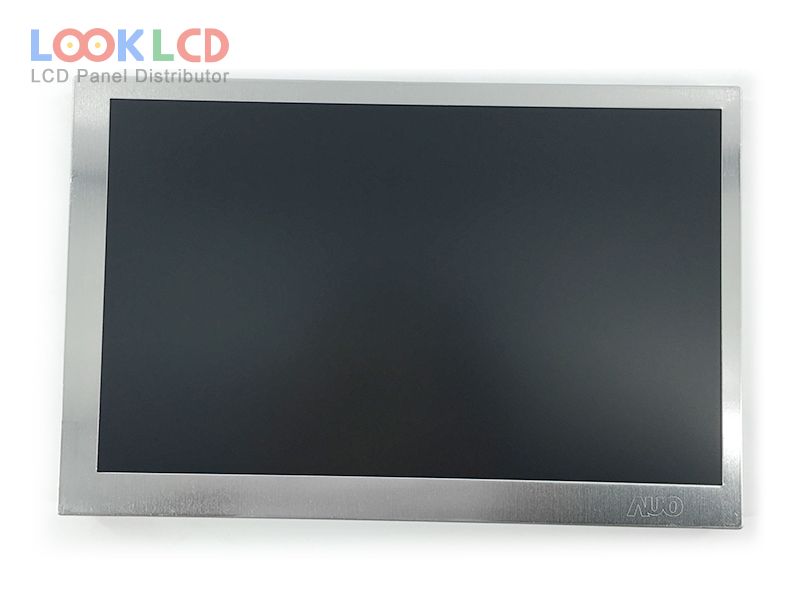

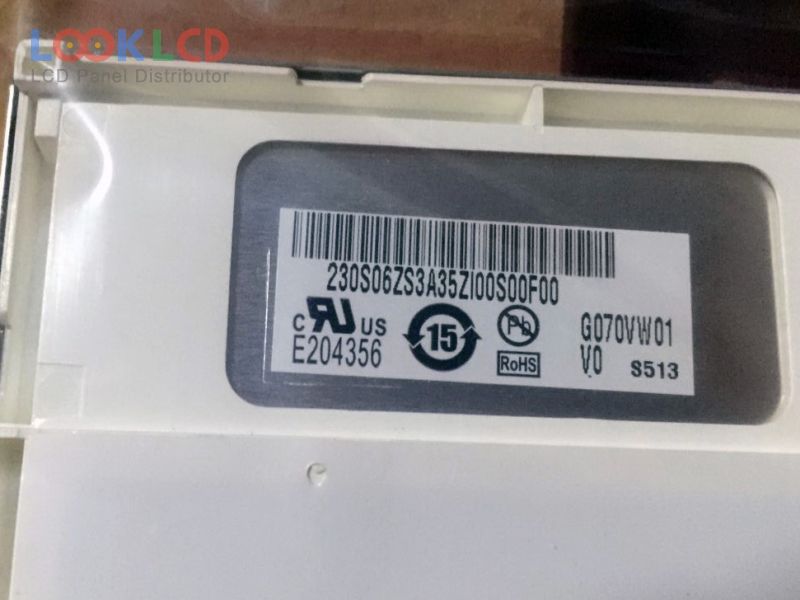

| PartNumber | G070VW01 V0 |
| Marca | AUO |
| mărimea | 7.0 |
| Aplicație | IA |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 750:1 |
| Culori | 262K/16.2M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | G070VW01 V0 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 152.4×91.44 mm |
| contur | 170×111×8 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 750:1 (Typ.) |
| culorile afișajului | 262K/16.2M (6-bit / 6-bit + FRC), CIE193160% |
| timp de raspuns | 20/10 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| EJ070NA-01F | Innolux | 7.0 | 1024×600 |
| G070VTN01.0 | AUO | 7.0 | 800×480 |
| G070VTT01.0 | AUO | 7.0 | 800×480 |
| G070VVN01.0 | AUO | 7.0 | 800×480 |
| G070VVN01.1 | AUO | 7.0 | 800×480 |
| G070VW01 V0 | AUO | 7.0 | 800×480 |
| G070VW01 V1 | AUO | 7.0 | 800×480 |
| LB070WQ4-TM06 | LG Display | 7.0 | 480×234 |
| TM070DDH08 | Tianma | 7.0 | 1024×600 |
| AC150XA01 | Mitsubishi | 15.0 | 1024×768 |
| G104XGE-L05 | Innolux | 10.4 | 1024×768 |
| HTW-G320240B2 | Other | 5.7 | 320×240 |
| MD640.400-52 | FINLUX | 9.1 | 640×400 |
| NL10276BC20-04 | NLT | 10.4 | 1024×768 |
| NL10276BC30-38B | NLT | 15.0 | 1024×768 |
| NL8060BC31-47 | NLT | 12.1 | 800×600 |
| PD104SLD | E Ink | 10.4 | 800×600 |
| PD104VT3 | E Ink | 10.4 | 640×480 |
| TX26D17VM2BAA | KOE | 10.4 | 640×480 |
