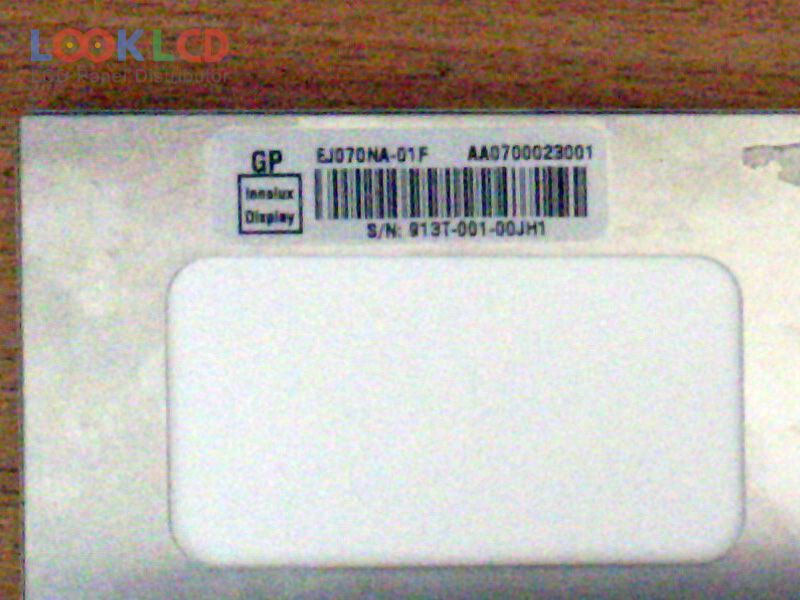

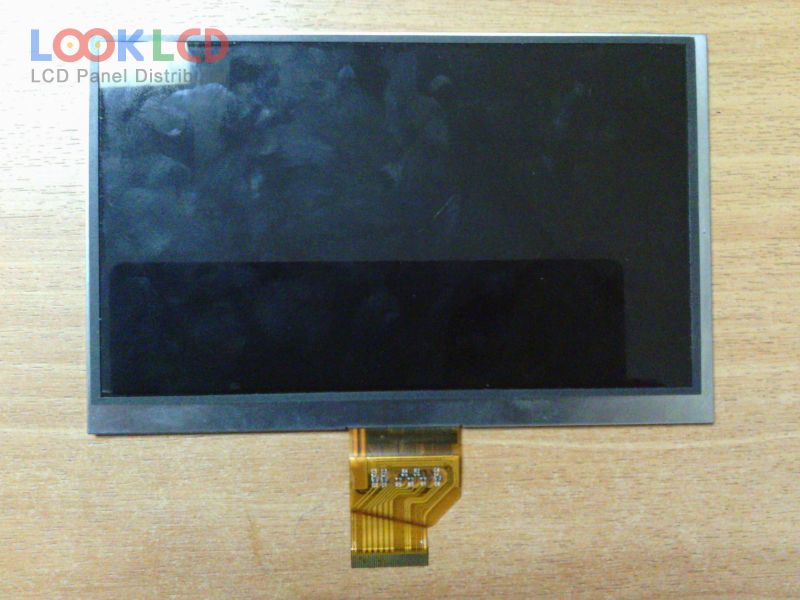

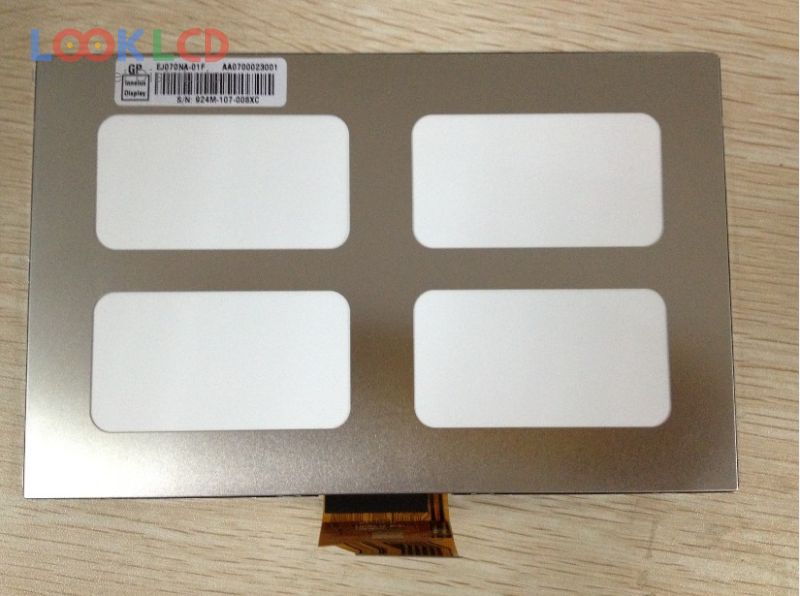

| PartNumber | EJ070NA-01F |
| Marca | Innolux |
| mărimea | 7.0 |
| Aplicație | MP4 |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 700:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CHIMEI INNOLUX |
| model de panou | EJ070NA-01F |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 153.6×90 mm |
| contur | 165.75×105.39×3.7 mm |
| suprafaţă | Glare (Haze 0%), Hard coating |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S6PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 8-bit), 40 pins |
| tensiune de intrare | 3.3/11.0/20.0-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplicarea | MP4 |
| AM-1024600KTMQW-04H | AMPIRE | 7.0 | 1024×600 |
| AT070TN93 | Innolux | 7.0 | 800×480 |
| C070VW03 V0 | AUO | 7.0 | 800×480 |
| C070VW04 V7 | AUO | 7.0 | 800×480 |
| CLAA070LFA1 CW | CPT | 7.0 | 800×480 |
| CLAA070NQ01 XN | CPT | 7.0 | 1024×600 |
| EJ070IA-04A | Innolux | 7.0 | 800×1280 |
| EJ070NA-01F | Innolux | 7.0 | 1024×600 |
| EJ070NA-01J | Innolux | 7.0 | 1024×600 |
| NL8048AC19-13 | NLT | 7.0 | 800×480 |
| CLAA070LB01CW | CPT | 7.0 | 800×480 |
| CLAA070LC0ACW | CPT | 7.0 | 800×480 |
| CLAA070NC0DCT | CPT | 7.0 | 1024×600 |
| CLAA070ND22CW | CPT | 7.0 | 1024×600 |
| CLAA070ND30CW | CPT | 7.0 | 1024×600 |
| LMS700KF06 | Samsung | 7.0 | 800×480 |
| LTN089NT01 | Samsung | 8.9 | 1024×600 |
| N070LGE-L41 | Innolux | 7.0 | 1024×600 |
| Q070LRE-L81 | Innolux | 7.0 | 1024×600 |
| TM080XPH01 | Tianma | 8.0 | 1280×768 |
