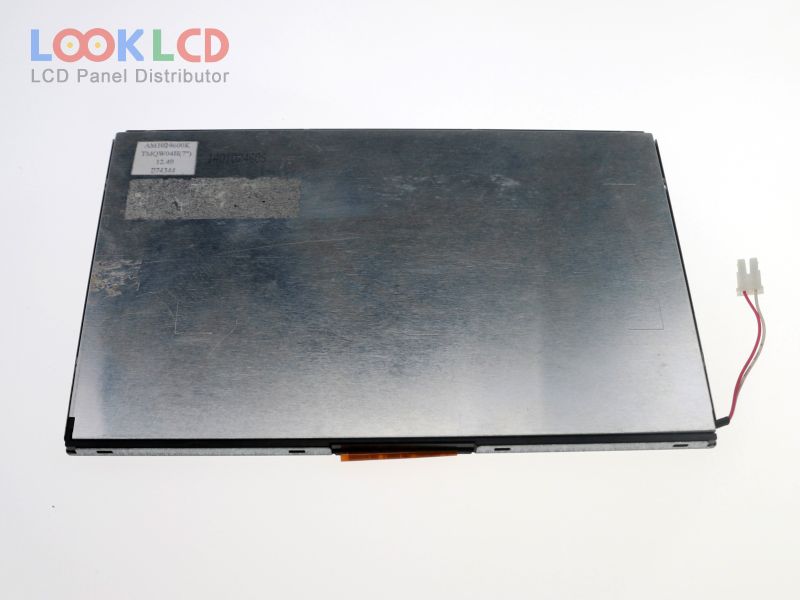

| PartNumber | AM-1024600KTMQW-04H |
| Marca | AMPIRE |
| mărimea | 7.0 |
| Aplicație | CNS |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 1000 |
| CR | 700:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AMPIRE |
| model de panou | AM-1024600KTMQW-04H |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 153.6×90 mm |
| contur | 165.5×104.44×5.3 mm |
| suprafaţă | Glare (Haze 0%), Hard coating |
| luminozitatea | 1000 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 75/75/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 8S3PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 8-bit), 39 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | CNS |
