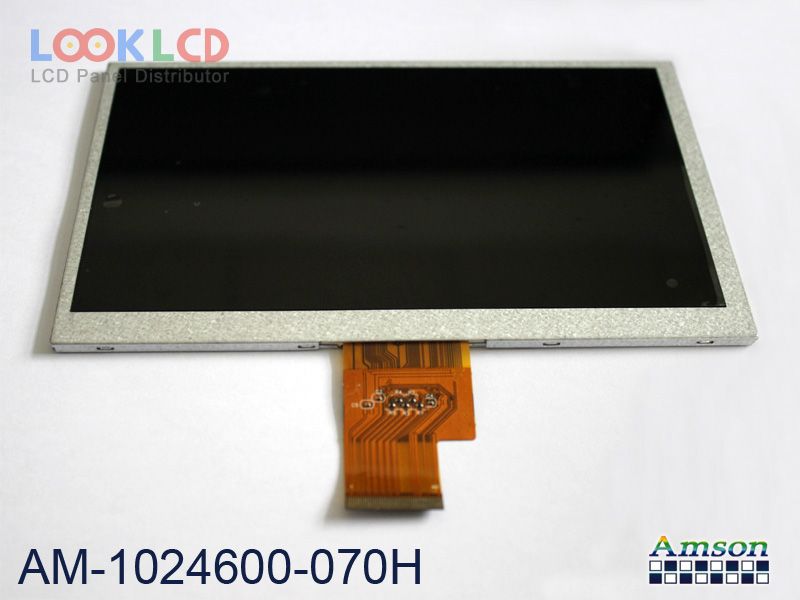

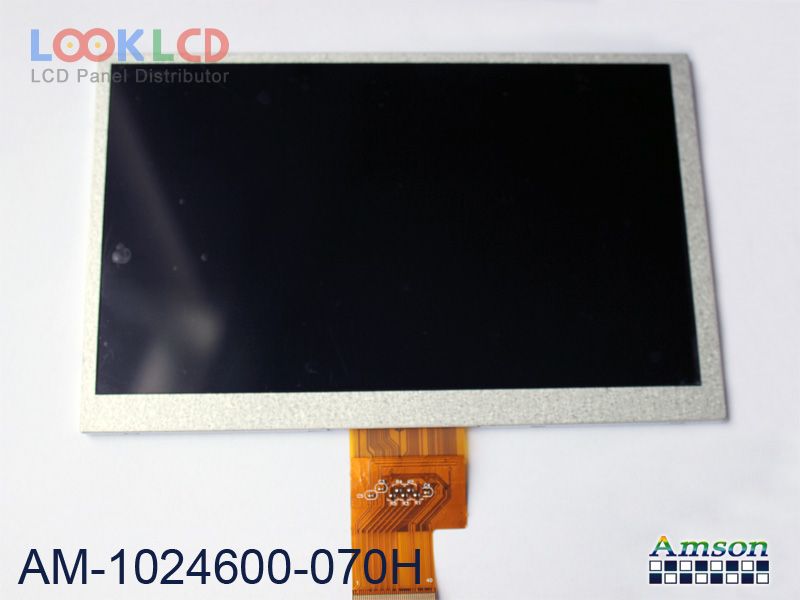

| PartNumber | AM-1024600-070H |
| Marca | Other |
| mărimea | 7.0 |
| Aplicație | CNS |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | |
| CR | |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | Amson |
| model de panou | AM-1024600-070H |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 153.6×90 mm |
| contur | 165.75×105.39×3.7 mm |
| suprafaţă | |
| luminozitatea | |
| Raport de contrast | |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Dithering) |
| timp de raspuns | |
| unghi de vedere | |
| frecvență | 60Hz |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | CNS |
