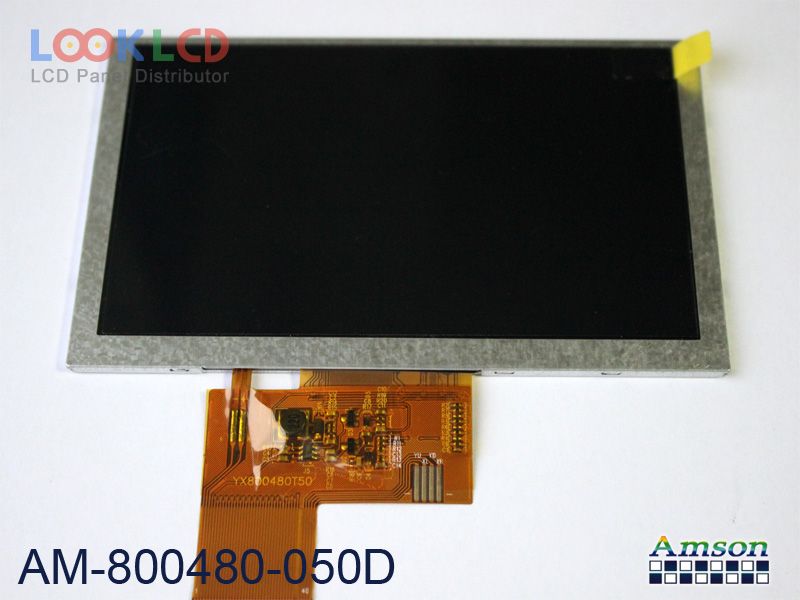

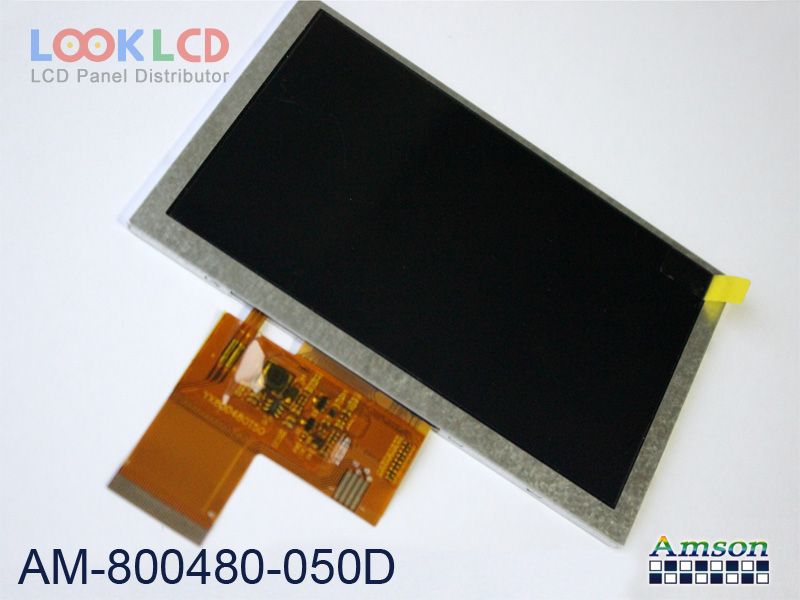

| PartNumber | AM-800480-050D |
| Marca | Other |
| mărimea | 5.0 |
| Aplicație | CNS |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | |
| CR | |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | Amson |
| model de panou | AM-800480-050D |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 108×64.8 mm |
| contur | 120.7×75.8×3.1 mm |
| suprafaţă | |
| luminozitatea | |
| Raport de contrast | |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | |
| unghi de vedere | |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | CNS |
| AM-800480-050D | Other | 5.0 | 800×480 |
| AM-800480LATMQW-TN0H | AMPIRE | 5.0 | 800×480 |
| AM-800480LTMQW-00H-F | AMPIRE | 5.0 | 800×480 |
| AM-800480LTMQW-W0H | AMPIRE | 5.0 | 800×480 |
| AM-800480R3TMQW-B2H | AMPIRE | 7.0 | 800×480 |
| AM-800480RCTMQW-00H | AMPIRE | 7.0 | 800×480 |
| AM-800480RSTMQW-TA1H | AMPIRE | 7.0 | 800×480 |
| AM-800480RWTMQW-TA4H | AMPIRE | 7.0 | 800×480 |
| AM-800480STMQW-00 | AMPIRE | 7.0 | 800×480 |
| AM-800480STMQW-W0 | AMPIRE | 7.0 | 800×480 |
| A070VTN03.0 | AUO | 7.0 | 800×480 |
| AT080TN42 V.1 | Innolux | 8.0 | 800×600 |
| C070VVN03.1 | AUO | 7.0 | 800×480 |
| CLAA069LA0NCW | CPT | 7.0 | 800×480 |
| CLAA080LG02AW | CPT | 8.0 | 800×480 |
| CLAA090LC41CW | CPT | 9.0 | 800×480 |
| L5S30883P00 | SANYO | 4.5 | 480×240 |
| LQ070T5GC01 | SHARP | 7.0 | |
| NL3224AC35-01 | NLT | 5.5 | 320×240 |
| TFD58W22MW | TOSHIBA | 5.8 | 400×234 |
