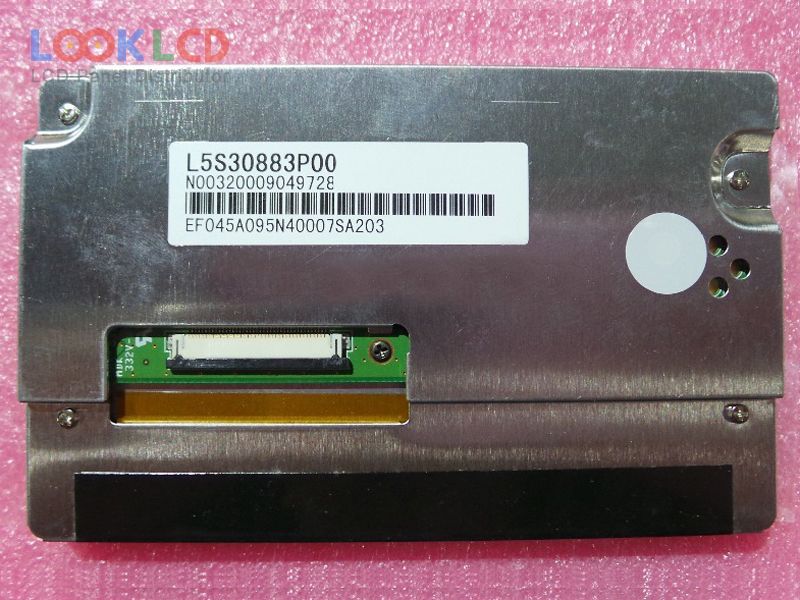

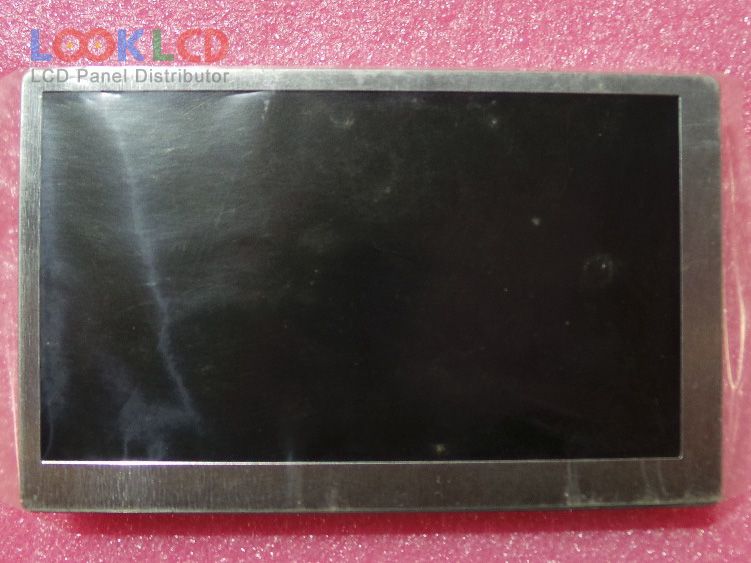

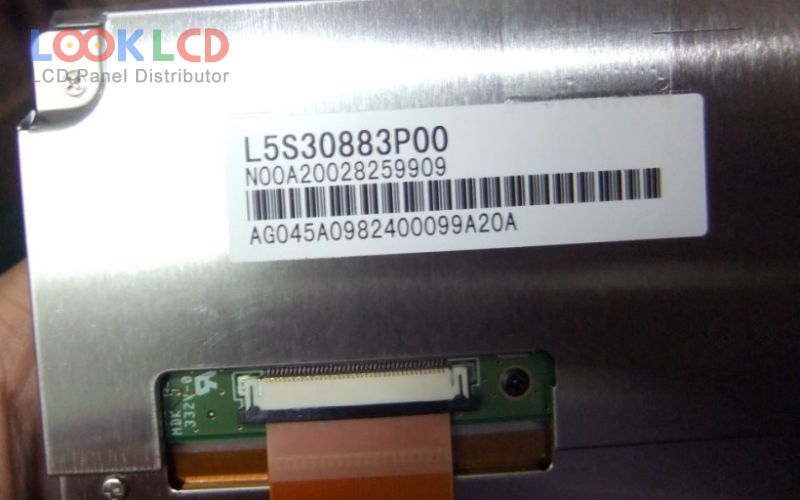

| PartNumber | L5S30883P00 |
| Marca | SANYO |
| mărimea | 4.5 |
| Aplicație | CNS |
| Rezoluţie | 480×240 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 300:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SANYO |
| model de panou | L5S30883P00 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 4.5 inch |
| rezoluţie | 480(RGB)×240 , WQVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 99.36×56.04 mm |
| contur | 112.7×70.2 mm |
| suprafaţă | Glare (Haze 0%) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 300:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 10/20 (Typ.)(Tr/Td) |
| unghi de vedere | 55/55/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| rohs: | |
| aplicarea | CNS |
| ACX435AKN-7 | SONY | 4.5 | 800×1280 |
| BV045WVM-N00 | BOE | 4.5 | 480×800 |
| L5S30341P00 | SANYO | 12.1 | 800×600 |
| L5S30883P00 | SANYO | 4.5 | 480×240 |
| LH450WX3-SD01 | LG Display | 4.5 | 720×1280 |
| LT044MDW7000 | TOSHIBA | 4.5 | 720×1280 |
| PJ045IC-01F | Innolux | 4.5 | 720×1280 |
| PW045XS2 | E Ink | 4.5 | 320×234 |
| TM045XDZP08 | Tianma | 4.5 | 540×960 |
| TM045YDH27 | Tianma | 4.5 | 480×854 |
| AV080WSM-NW0 | BOE | 8.0 | 1024×600 |
| C070FW02 V2 | AUO | 7.0 | 480×234 |
| CLAA061LA0BCW | CPT | 6.1 | 800×480 |
| CLAA070LD0DCW | CPT | 7.0 | 800×480 |
| CLAA102NA01CW | CPT | 10.2 | 1024×600 |
| DLC0700EZG-2 | Other | 7.0 | 800×480 |
| G104V1-T01 | Innolux | 10.4 | 640×480 |
| LB070WV7-TD02 | LG Display | 7.0 | 800×480 |
| LQ065T9DR52U | SHARP | 6.5 | 400×240 |
| TM101DDHG01 | Tianma | 10.1 | 1024×600 |
