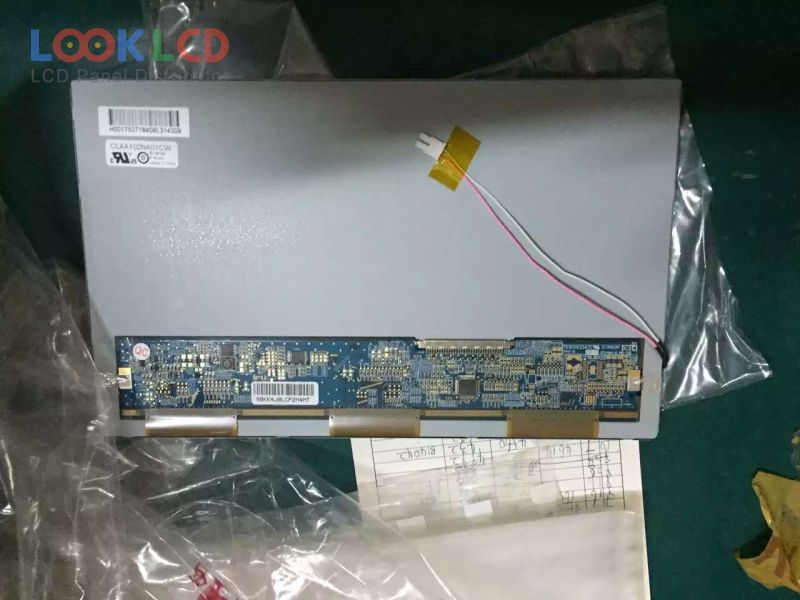

| PartNumber | CLAA102NA01CW |
| Marca | CPT |
| mărimea | 10.2 |
| Aplicație | CNS |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | CPT |
| model de panou | CLAA102NA01CW |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.2 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 222.72×130.5 mm |
| contur | 235×145.8 mm |
| suprafaţă | Antiglare |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 25 (Max.)(Tr+Td) |
| unghi de vedere | 70/70/40/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| rohs: | |
| aplicarea | CNS |
