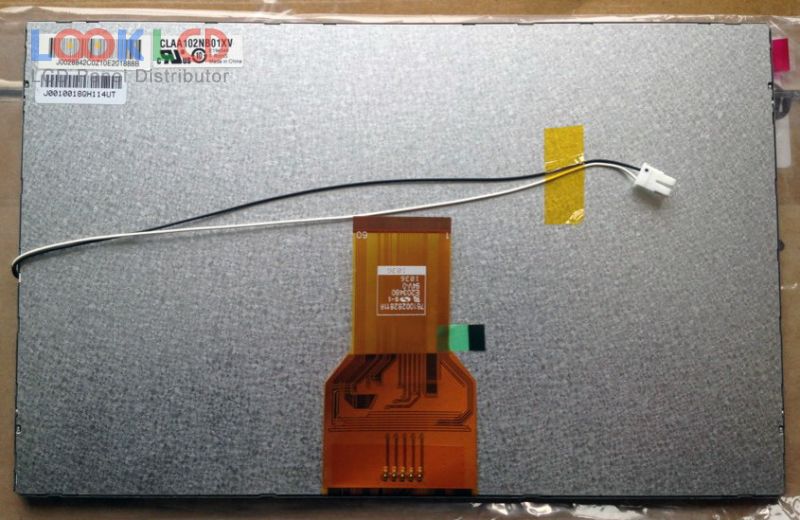

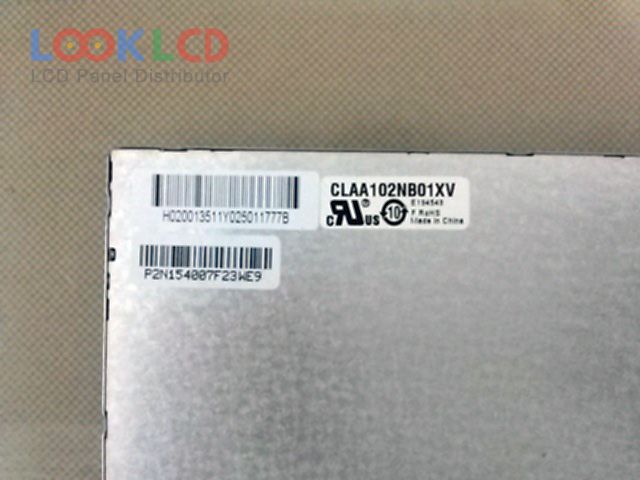

| PartNumber | CLAA102NB01XV |
| Marca | CPT |
| mărimea | 10.2 |
| Aplicație | IA |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 700:1 |
| Culori | 262K/16.2M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CPT |
| model de panou | CLAA102NB01XV |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.2 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | HFFS, Normally Black, Transmissive |
| Zonă activă | 222.72×130.5 mm |
| contur | 235×147×5.4 mm |
| suprafaţă | Antiglare |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 262K/16.2M (6-bit / 6-bit + FRC), CIE193160% |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4S12PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 8-bit), 60 pins |
| tensiune de intrare | 3.3/13/18/-6V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplicarea | IA |
