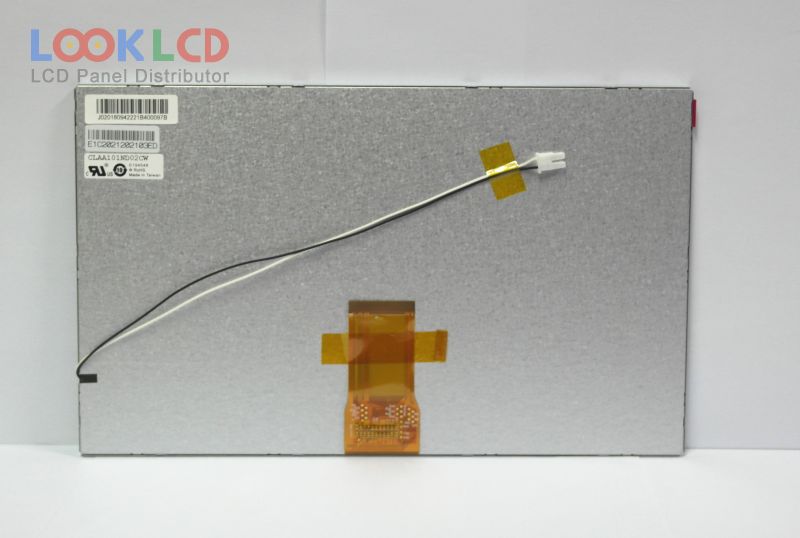

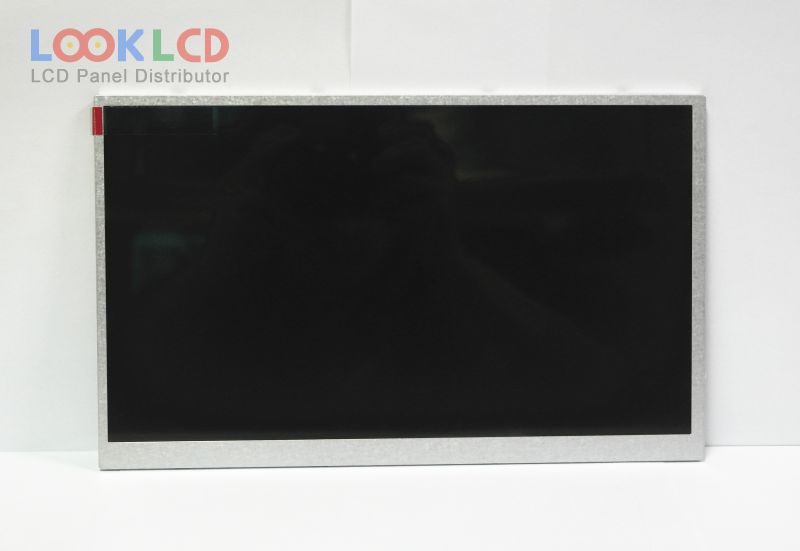

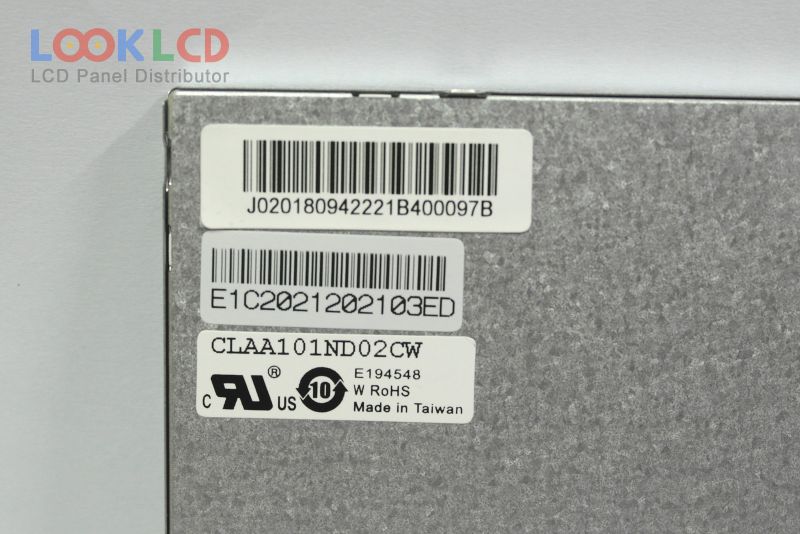

| PartNumber | CLAA101ND02CW |
| Marca | CPT |
| mărimea | 10.1 |
| Aplicație | DPF |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | |
| CR | 600:1 |
| Culori | 262K/16.2M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CPT |
| model de panou | CLAA101ND02CW |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 222.72×125.28 mm |
| suprafaţă | Antiglare |
| luminozitatea | |
| Raport de contrast | 600:1 (Typ.) |
| culorile afișajului | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 50 pins |
| aplicarea | DPF |
| CLAA101FP05 | CPT | 10.1 | 1920×1200 |
| CLAA101NC01CW | CPT | 10.1 | 1024×600 |
| CLAA101ND07CW | CPT | 10.1 | 1024×600 |
| CLAA101WA01A | CPT | 10.1 | 1366×768 |
| CLAA102NA0ACG | CPT | 10.2 | 1024×600 |
| CLAA102NA0DCW | CPT | 10.2 | 1024×600 |
| CLAA102NA2CCN | CPT | 10.2 | 1024×600 |
| CLAA102NB01XV | CPT | 10.2 | 1024×600 |
| CLAA104XA02CW | CPT | 10.4 | 1024×768 |
| CLAA104XA12BW | CPT | 10.4 | 1024×768 |
| A085FW01 V5 | AUO | 8.5 | 480×234 |
| AT070TN01 | Innolux | 7.0 | 480×234 |
| HSD070ISN1-D00 | HannStar | 7.0 | 800×600 |
| HSD100IFW3-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW3-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-B01 | HannStar | 10.1 | 1024×600 |
| LD050WQ1-TD02 | LG Display | 5.0 | 480×272 |
| LQ090Y3DG01 | SHARP | 9.0 | 800×480 |
| LQ090Y3DG01A | SHARP | 9.0 | 800×480 |
| LW700AT9901 | Innolux | 7.0 | 800×480 |
