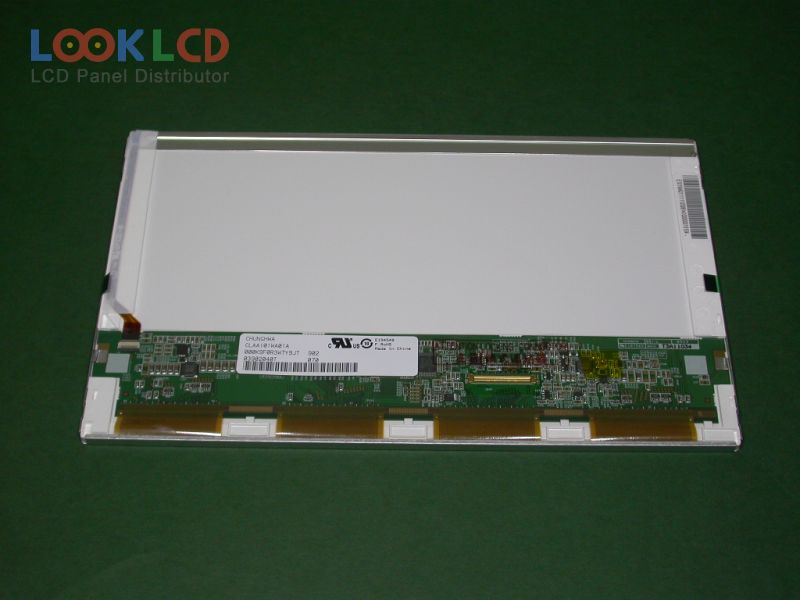

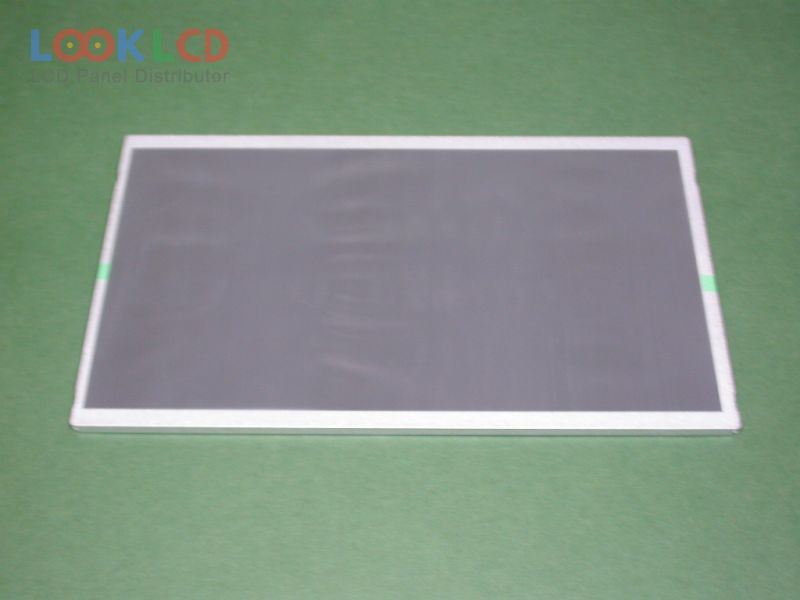

| PartNumber | CLAA101WA01A |
| Marca | CPT |
| mărimea | 10.1 |
| Aplicație | NBPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 230 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CPT |
| model de panou | CLAA101WA01A 3 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 222.72×125.22 mm |
| contur | 235×143×5.2 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |

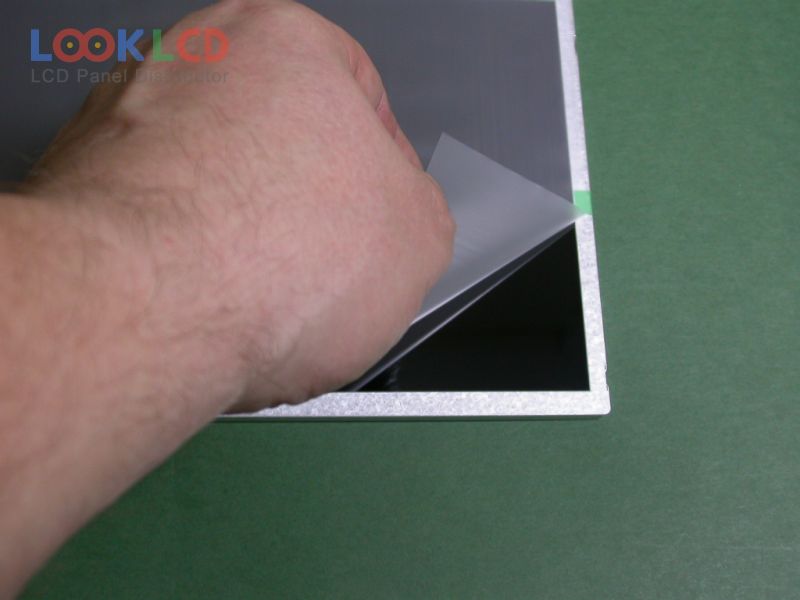

| suprafaţă | Glare (Haze 0%) |
| luminozitatea | 230 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193158% |
| timp de raspuns | 16 (Typ.)(Tr+Td) |
| unghi de vedere | 40/40/15/30 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| rohs: | |
| aplicarea | NBPC |
