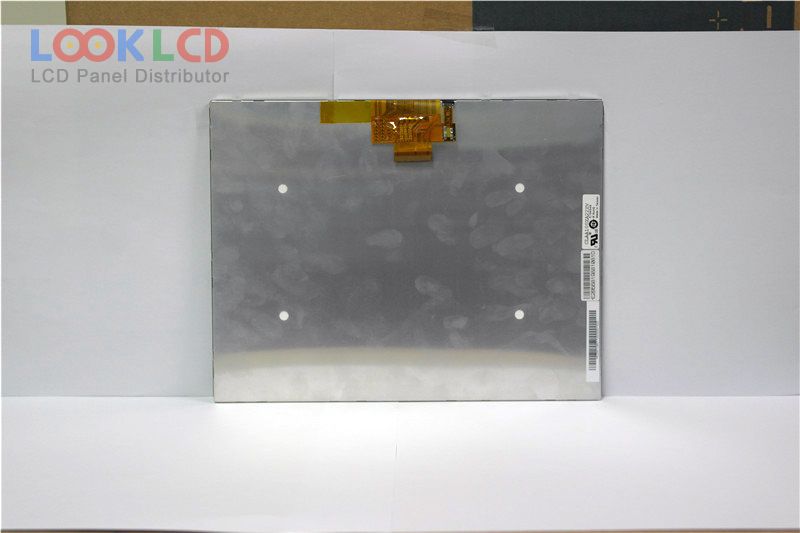

| PartNumber | CLAA100XA22XV |
| Marca | CPT |
| mărimea | 10.0 |
| Aplicație | PAD |
| Rezoluţie | 1024×768 |
| Compoziţie | LCM |
| Luminozitate | |
| CR | 800:1 |
| Culori | 262K/16.2M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CPT |
| model de panou | CLAA100XA22XV |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.0 inch |
| rezoluţie | 1024(RGB)×768 , XGA |
| modul de afișare | HFFS, Normally Black, Transmissive |
| Zonă activă | 202.752×152.064 mm |
| suprafaţă | |
| luminozitatea | |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDWithout Driver |

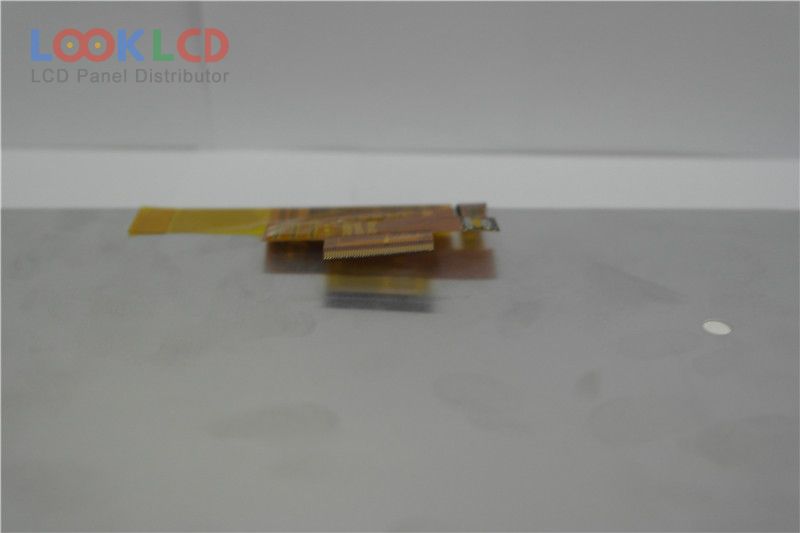

| interfață de semnal | LVDS (1 ch, 6/8-bit), 40 pins |
| tensiune de intrare | 3.3/13/18/-6V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplicarea | PAD |
| CLAA100XA22XV | CPT | 10.0 | 1024×768 |
| CLAA101NA0ACN | CPT | 10.1 | 1024×576 |
| CLAA101ND02CW | CPT | 10.1 | 1024×600 |
| CLAA101ND06CW | CPT | 10.1 | 1024×600 |
| CLAA101WA01 | CPT | 10.1 | 1366×768 |
| CLAA101WA01A | CPT | 10.1 | 1366×768 |
| CLAA101WH13LE | CPT | 10.1 | 1280×800 |
| CLAA102NA0DCW | CPT | 10.2 | 1024×600 |
| CLAA102NA1BCN | CPT | 10.2 | 1024×600 |
| CLAA102NC01CW | CPT | 10.2 | 1024×600 |
| B101EAN01.5 | AUO | 10.1 | 1280×800 |
| BP070WS1-400 | BOE | 7.0 | 1024×600 |
| EJ101IA-01G | Innolux | 10.1 | 1280×800 |
| HE070IA-04R | Innolux | 7.0 | 800×1280 |
| HSD101PHW1-A00 | HannStar | 10.1 | 1366×768 |
| LP116WH4-SLN2 | LG Display | 11.6 | 1366×768 |
| LP125WH2-SLT2 | LG Display | 12.5 | 1366×768 |
| LPM070W425D | JDI | 7.0 | 1200×1920 |
| LTL070AL03 | Samsung | 7.0 | 800×1280 |
| N080ICE-GB0 Rev.C2 | Innolux | 8.0 | 800×1280 |
