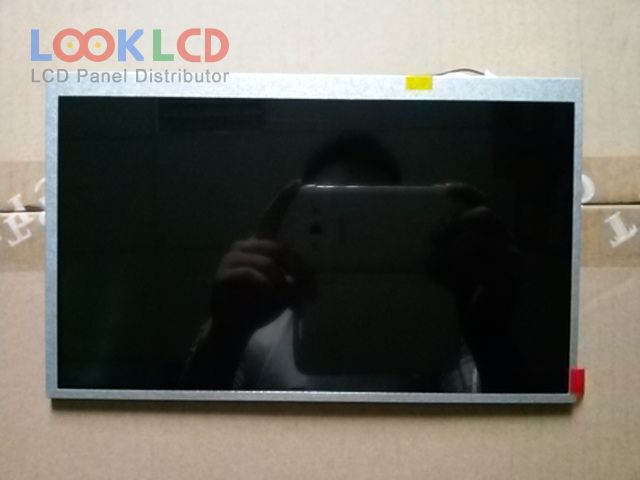

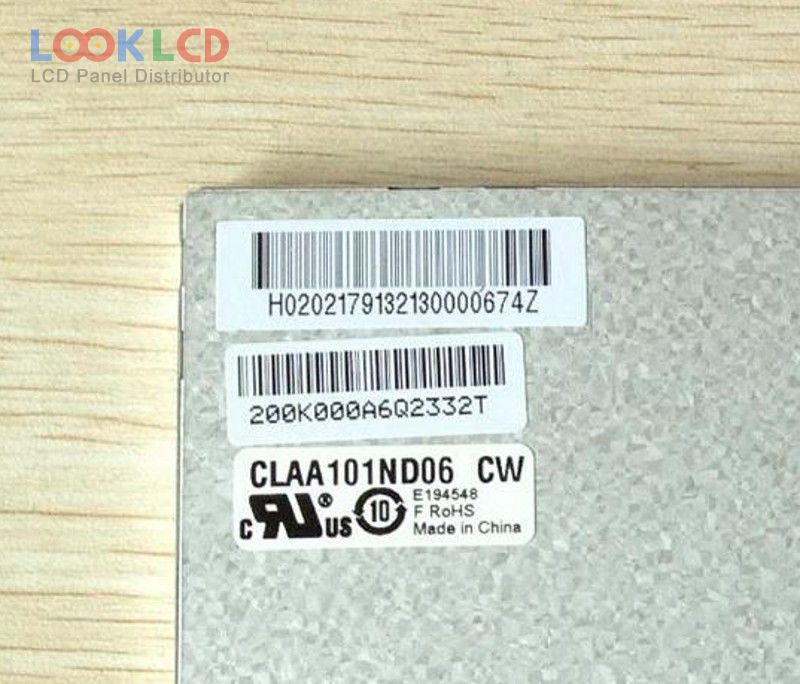

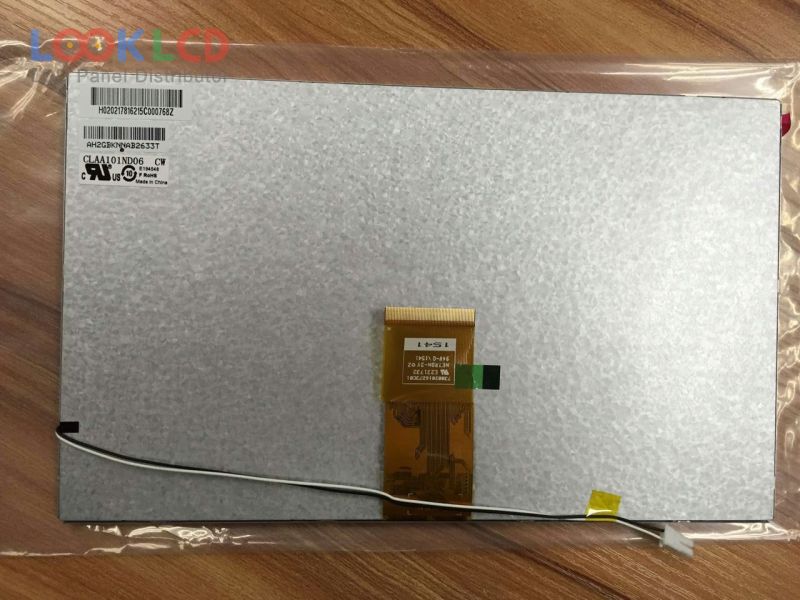

| PartNumber | CLAA101ND06CW |
| Marca | CPT |
| mărimea | 10.1 |
| Aplicație | CNS |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 500 |
| CR | 600:1 |
| Culori | 262K/16.2M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CPT |
| model de panou | CLAA101ND06CW |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 222.72×125.28 mm |
| contur | 235×143×4.8 mm |
| suprafaţă | Antiglare |
| luminozitatea | 500 cd/m² (Typ.) |
| Raport de contrast | 600:1 (Typ.) |
| culorile afișajului | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6S7PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 60 pins |
| tensiune de intrare | 3.3/9.6/18.0/-6.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplicarea | CNS |
| CLAA101FP01 XG | CPT | 10.1 | 1920×1200 |
| CLAA101FP05 | CPT | 10.1 | 1920×1200 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| CLAA101ND02CW | CPT | 10.1 | 1024×600 |
| CLAA101WA01A | CPT | 10.1 | 1366×768 |
| CLAA101WJ01 | CPT | 10.1 | 1366×768 |
| CLAA101WJ02 | CPT | 10.1 | 1366×768 |
| CLAA102NA01CW | CPT | 10.2 | 1024×600 |
| CLAA102NA0ACG | CPT | 10.2 | 1024×600 |
| CLAA102NB01XV | CPT | 10.2 | 1024×600 |
| AC070MD01 | Mitsubishi | 7.0 | 800×480 |
| AT102TN03 V.3 | Innolux | 10.2 | 800×480 |
| CLAA070LC05CW | CPT | 7.0 | 800×480 |
| CLAA070LF06CW | CPT | 7.0 | 800×480 |
| HSD062IDW1-A02 | HannStar | 6.2 | 800×480 |
| L5F30947T0A | Epson | 6.5 | 800×480 |
| LB048Q01-TD01 | LG Display | 4.8 | 240×257 |
| LQ050A5BS01 | SHARP | 5.0 | 320×234 |
| LQ065Y5DG03 | SHARP | 6.5 | 800×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
