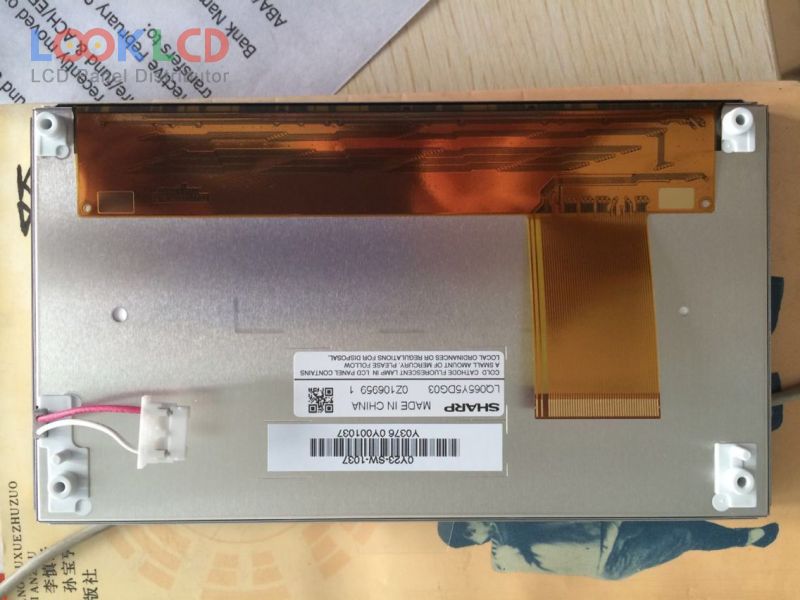

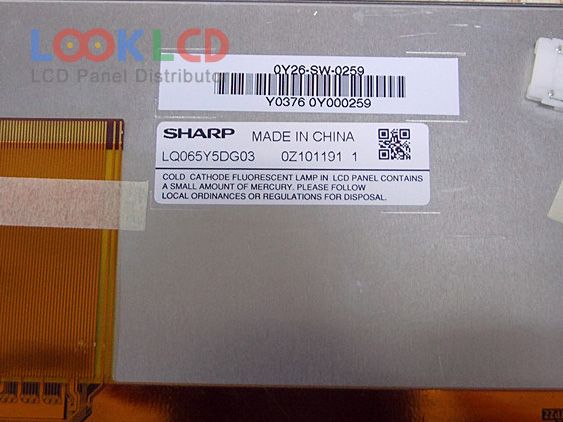

| PartNumber | LQ065Y5DG03 |
| Marca | SHARP |
| mărimea | 6.5 |
| Aplicație | CNS |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 500 |
| CR | 300:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ065Y5DG03 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 6.5 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 144×79.24 mm |
| contur | 157.4×89.7×12.6 mm |
| suprafaţă | Antiglare, Antireflection |
| luminozitatea | 500 cd/m² (Typ.) |
| Raport de contrast | 300:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 10/16 (Typ.)(Tr/Td) |
| unghi de vedere | 60/60/40/55 (Typ.)(CR≥5)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 50 pins |
| tensiune de intrare | 5.3/3.3/15/-12V (Typ.)(VSHA/VSHD/VDD/VEEDC) |
| aplicarea | CNS |
| LQ065T5AR05 | SHARP | 6.5 | 400×234 |
| LQ065T5BR08 | SHARP | 6.5 | 400×240 |
| LQ065T5DG05 | SHARP | 6.5 | 480×234 |
| LQ065T5DG30 | SHARP | 6.5 | 400×240 |
| LQ065T5GA01 | SHARP | 6.5 | 400×234 |
| LQ065T5GG63 | SHARP | 6.5 | 400×234 |
| LQ065T9BR54U | SHARP | 6.5 | 400×240 |
| LQ065T9DR52U | SHARP | 6.5 | 400×240 |
| LQ065Y5DG01 | SHARP | 6.5 | 800×480 |
| LQ065Y5DZ01 | SHARP | 6.5 | 800×480 |
| 70WVW2T | SII | 7.0 | 800×480 |
| C065GW03 V3 | AUO | 6.5 | 400×240 |
| C070VW04 V0 | AUO | 7.0 | 800×480 |
| C070VW04 VB | AUO | 7.0 | 800×480 |
| CLAA061LA0DCW | CPT | 6.1 | 800×480 |
| DLC0700DDG-4 | Other | 7.0 | 800×480 |
| G121X1-L04 | Innolux | 12.1 | 1024×768 |
| HSD062IDW1-A02 | HannStar | 6.2 | 800×480 |
| LQ065Y5DG01 | SHARP | 6.5 | 800×480 |
| TFD65W30 | TOSHIBA | 6.5 | 400×234 |
