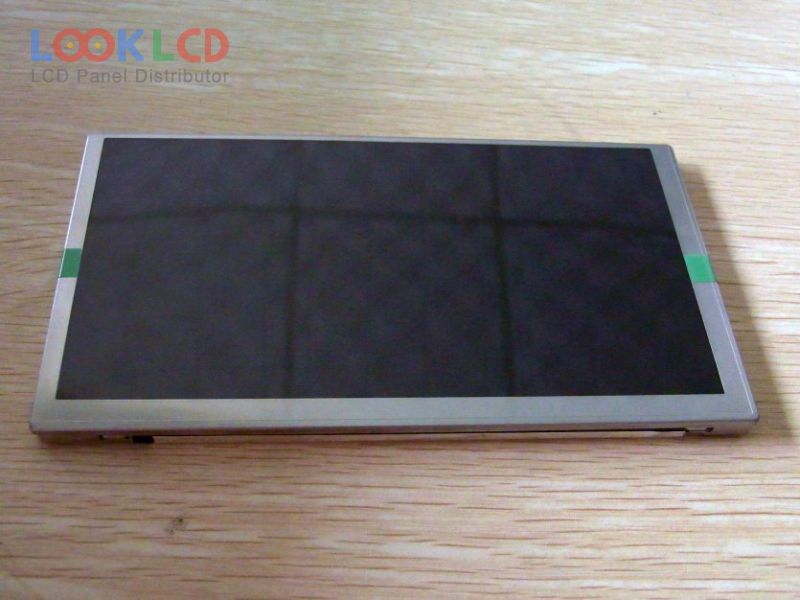

| PartNumber | CLAA061LA0DCW |
| Marca | CPT |
| mărimea | 6.1 |
| Aplicație | CNS |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 500 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | CPT |
| model de panou | CLAA061LA0DCW |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 6.1 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 136.2×72 mm |
| contur | 149×82.9×6.36 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 500 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193170% |
| timp de raspuns | 20 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6S4PWLEDWithout Driver |
| interfață de semnal | TTL (1 ch, 6-bit), 60 pins |
| tensiune de intrare | 3.3/9.2/18/-6V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplicarea | CNS |
