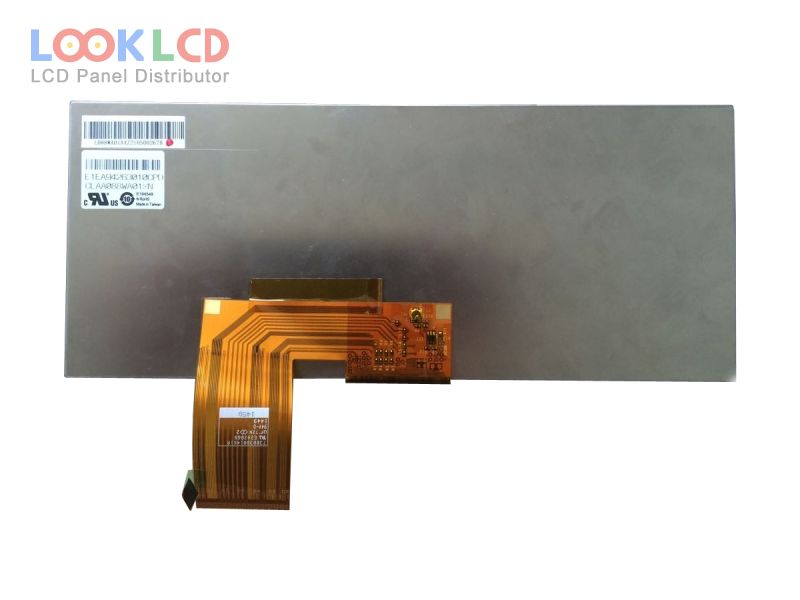

| PartNumber | CLAA088WA01XN |
| Marca | CPT |
| mărimea | 8.8 |
| Aplicație | CNS |
| Rezoluţie | 1280×480 |
| Compoziţie | LCM |
| Luminozitate | 500 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CPT |
| model de panou | CLAA088WA01XN |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 8.8 inch |
| rezoluţie | 1280(RGB)×480 , DVGA |
| modul de afișare | HFFS, Normally Black, Transmissive |
| Zonă activă | 209.28×78.48 mm |
| contur | 229.6×97.3×6.3 mm |
| suprafaţă | Antiglare (Haze 25%) |
| luminozitatea | 500 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193170% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S14PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 8-bit), 60 pins |
| tensiune de intrare | 3.3/13.0/20/-6.0V (Typ.)(DVDD/AVDD/IGH/IGL) |
| aplicarea | CNS |
