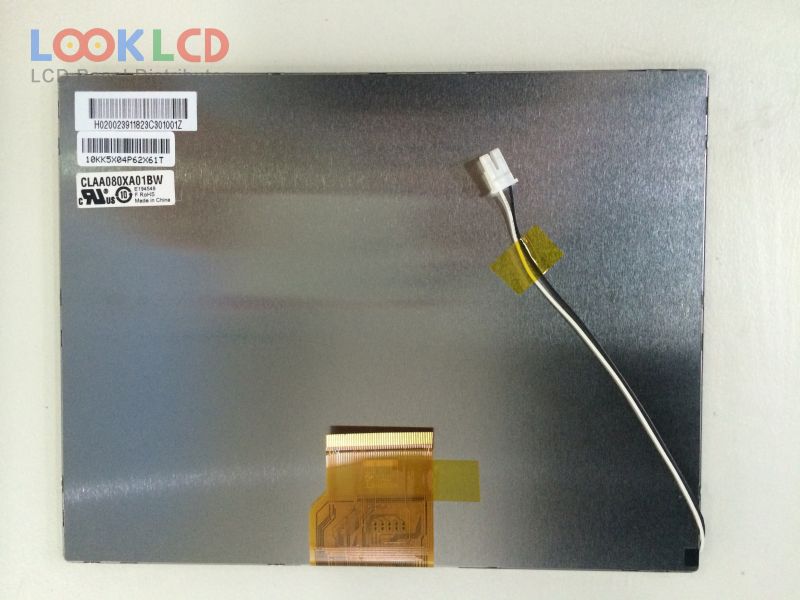

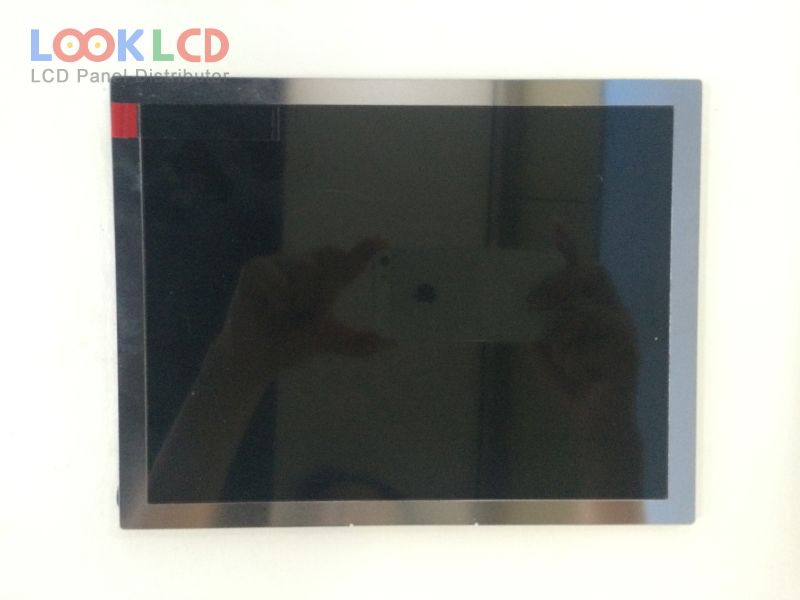

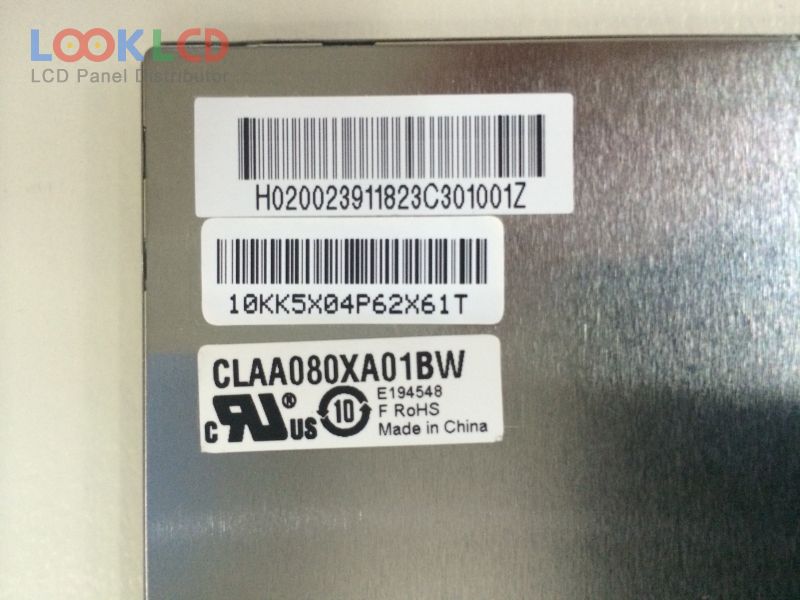

| PartNumber | CLAA080XA01BW |
| Marca | CPT |
| mărimea | 8.0 |
| Aplicație | DPF |
| Rezoluţie | 1024×768 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 700:1 |
| Culori | 262K/16.2M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CPT |
| model de panou | CLAA080XA01BW |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 8.0 inch |
| rezoluţie | 1024(RGB)×768 , XGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 162.048×121.536 mm |
| contur | 183×141×3.7 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| timp de raspuns | 20 (Typ.)(Tr+Td) |
| unghi de vedere | 60/60/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4S7PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 60 pins |
| tensiune de intrare | 3.3/9.6/18/-6V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplicarea | DPF |
| CLAA080JA11CW | CPT | 8.0 | 480×220 |
| CLAA080LA0BCW | CPT | 8.0 | 800×480 |
| CLAA080LB0AXV | CPT | 8.0 | 800×480 |
| CLAA080LG01CW | CPT | 8.0 | 800×480 |
| CLAA080LG02AW | CPT | 8.0 | 800×480 |
| CLAA080LJ01CW | CPT | 8.0 | 800×480 |
| CLAA080MB0DCW | CPT | 8.0 | 800×600 |
| CLAA080NA12 CW | CPT | 8.0 | 1024×600 |
| CLAA088WA01XN | CPT | 8.8 | 1280×480 |
| CLAA089NA0BCW | CPT | 8.9 | 1024×600 |
| A080SN01 V8 | AUO | 8.0 | 800×600 |
| A101SW02 V1 | AUO | 10.1 | 1024×600 |
| AT080TN03 V.1 | Innolux | 8.0 | 800×480 |
| EJ080NA-04C | Innolux | 8.0 | 1024×768 |
| HJ080IA-01F | Innolux | 8.0 | 1024×768 |
| LB070WV1-TD17 | LG Display | 7.0 | 800×480 |
| LB080WV3-B1 | LG Display | 8.0 | 800×480 |
| LSA40AT9001 | Innolux | 10.4 | 800×600 |
| LTE700WQ-F05 | Samsung | 7.0 | 480×234 |
| TM104SDHG30 | Tianma | 10.4 | 800×600 |
