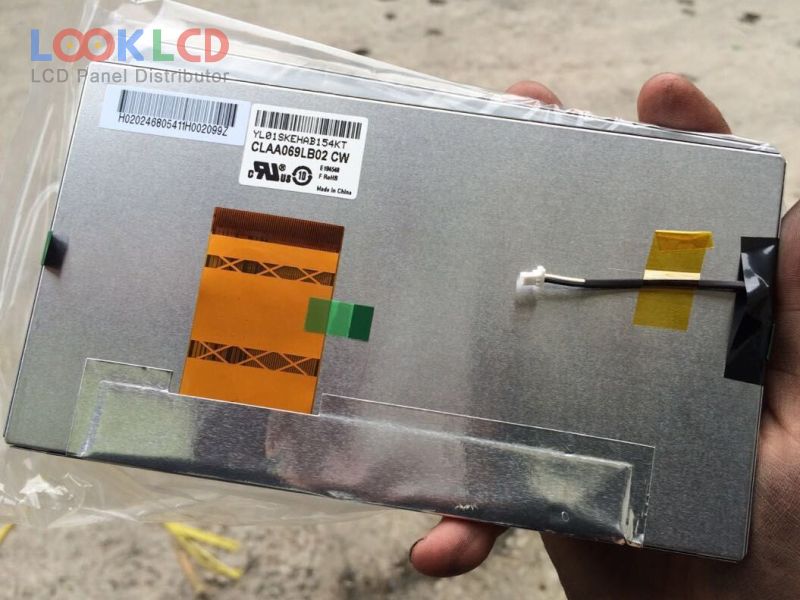

| PartNumber | CLAA069LB02CW |
| Marca | CPT |
| mărimea | 7.0 |
| Aplicație | CNS |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 500 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | CPT |
| model de panou | CLAA069LB02CW |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 156.6×81.6 mm |
| contur | 167×93×6.77 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 500 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193176% |
| timp de raspuns | 20 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4S7PWLEDWithout Driver |
| interfață de semnal | TTL (1 ch, 6-bit), 60 pins |
| tensiune de intrare | 3.3/9.2/18.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplicarea | CNS |
| CLAA061LA0BCW | CPT | 6.1 | 800×480 |
| CLAA061LA0DCW | CPT | 6.1 | 800×480 |
| CLAA062LA01CW | CPT | 6.2 | 800×480 |
| CLAA069JA11CW | CPT | 7.0 | 480×234 |
| CLAA069LA0ACW | CPT | 7.0 | 800×480 |
| CLAA069LA0NCW | CPT | 7.0 | 800×480 |
| CLAA069LA1AAW | CPT | 7.0 | 800×480 |
| CLAA069LB02CW | CPT | 7.0 | 800×480 |
| CLAA069LB03CW | CPT | 7.0 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
| 70WVW3A | SII | 7.0 | 800×480 |
| C070VW03 V0 | AUO | 7.0 | 800×480 |
| LA070WV1-TD01 | LG Display | 7.0 | 800×480 |
| LA080WV4-SD03 | LG Display | 8.0 | 800×480 |
| LA123WF1-SL01 | LG Display | 12.3 | 1920×720 |
| LB070WV1-TD01 | LG Display | 7.0 | 800×480 |
| LB080WV6-TA03 | LG Display | 8.0 | 800×480 |
| LTA070B511F | TOSHIBA | 7.0 | 800×480 |
| PW070XUA | E Ink | 7.0 | 480×234 |
| TFD58W22MW | TOSHIBA | 5.8 | 400×234 |
