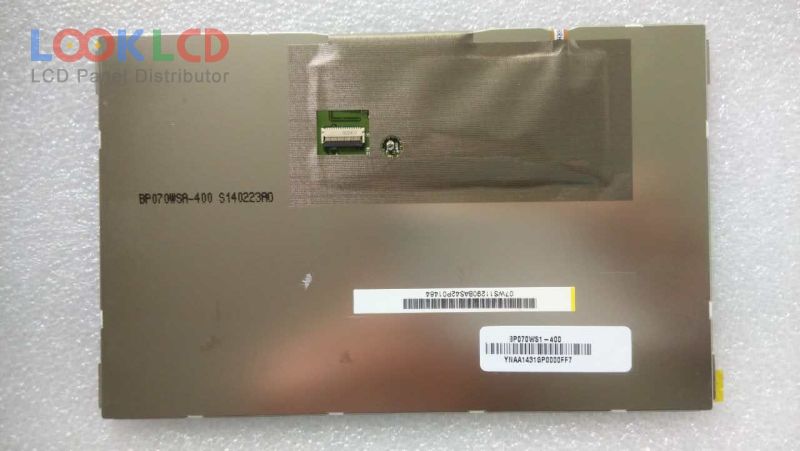

| PartNumber | BP070WS1-400 |
| Marca | BOE |
| mărimea | 7.0 |
| Aplicație | PAD |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 900:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | BOE |
| model de panou | BP070WS1-400 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | ADS, Normally Black, Transmissive |
| Zonă activă | 153.6×90 mm |
| contur | 162.8×102.9×4.2 mm |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 900:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193152% |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 5S4PWLEDEmbedded (LED Driver) |
| interfață de semnal | MIPI (4 data lanes), 31 pins |
| tensiune de intrare | 3.7V (Typ.) |
| aplicarea | PAD |
