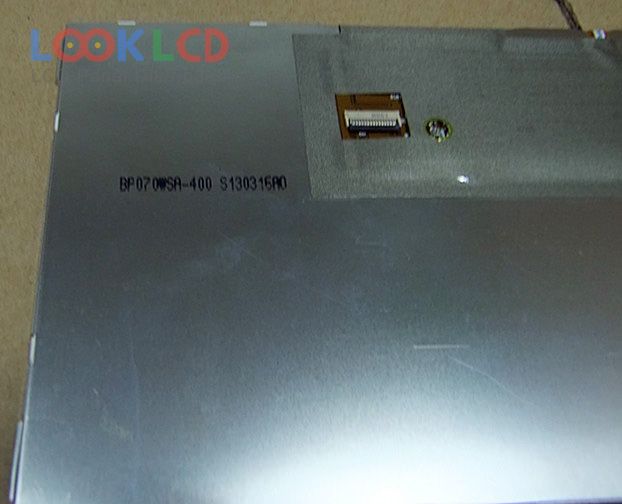

| PartNumber | BP070WSA-400 |
| Marca | BOE |
| mărimea | 7.0 |
| Aplicație | PAD |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | |
| CR | 900:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | |
| marca panoului | BOE |
| model de panou | BP070WSA-400 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | ADS, Normally Black, Transmissive |
| Zonă activă | 153.6×90 mm |
| suprafaţă | Hard coating (3H), Antireflection |
| luminozitatea | |
| Raport de contrast | 900:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC) |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| aplicarea | PAD |
| AM-1024600KTMQW-04H | AMPIRE | 7.0 | 1024×600 |
| BP070WS1-102 | BOE | 7.0 | 1024×600 |
| BP070WS1-200 | BOE | 7.0 | 1024×600 |
| BP070WS1-400 | BOE | 7.0 | 1024×600 |
| BP070WS1-500 | BOE | 7.0 | 1024×600 |
| BP070WSA-400 | BOE | 7.0 | 1024×600 |
| BP070WX1-100 | BOE | 7.0 | 1280×800 |
| BP070WX1-300 | BOE | 7.0 | 800×1280 |
| BP070WX6-400 | BOE | 7.0 | 800×1280 |
| CLAA069LA0FCW | CPT | 7.0 | 800×480 |
| B101EVT04.0 | AUO | 10.1 | 1280×800 |
| B101UAN01.7 HW0A | AUO | 10.1 | 1920×1200 |
| EJ101IA-01G | Innolux | 10.1 | 1280×800 |
| HV101WU1-1E3 | HYDIS | 10.1 | 1920×1200 |
| HX104X01-210 | HYDIS | 10.4 | 1024×768 |
| LP097QX2-SPAV | LG Display | 9.7 | 1536×2048 |
| LPM070W425D | JDI | 7.0 | 1200×1920 |
| N101ICG-L21 Rev.C2 | Innolux | 10.1 | 1280×800 |
| Q070LRE-LA1 | Innolux | 7.0 | 1024×600 |
| ZE090NA-01B | Innolux | 9.0 | 1280×800 |
