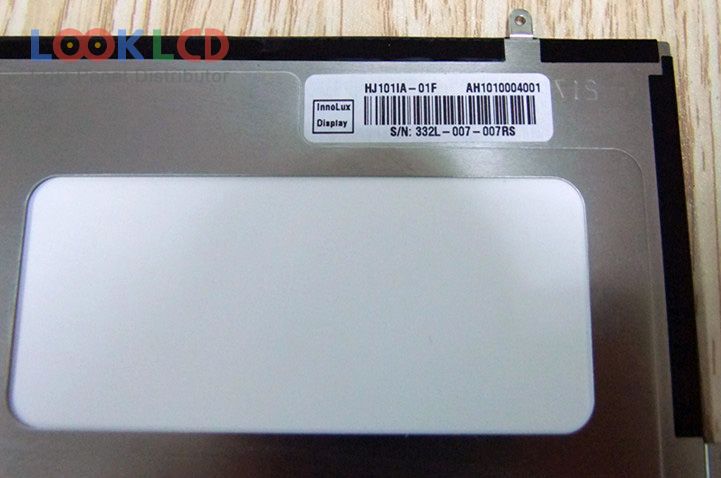

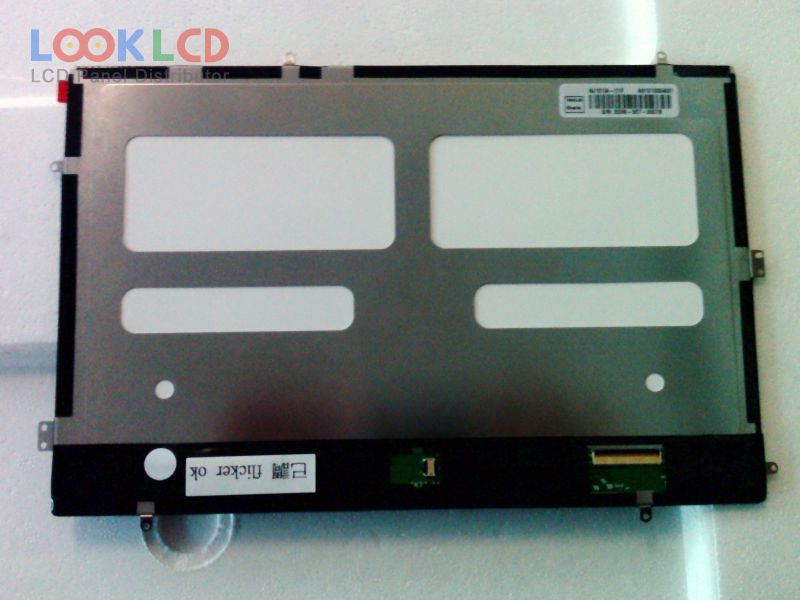

| PartNumber | HJ101IA-01F |
| Marca | Innolux |
| mărimea | 10.1 |
| Aplicație | PAD |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 800:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | CHIMEI INNOLUX |
| model de panou | HJ101IA-01F |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | IPS, Normally Black, Transmissive |
| Zonă activă | 216.96×135.6 mm |
| contur | 229.46×149.15×4.5 mm |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 12S3PWLEDEmbedded (LED Driver) |
| interfață de semnal | MIPI (4 data lanes) |
| tensiune de intrare | 3.7V (Typ.) |
| aplicarea | PAD |
