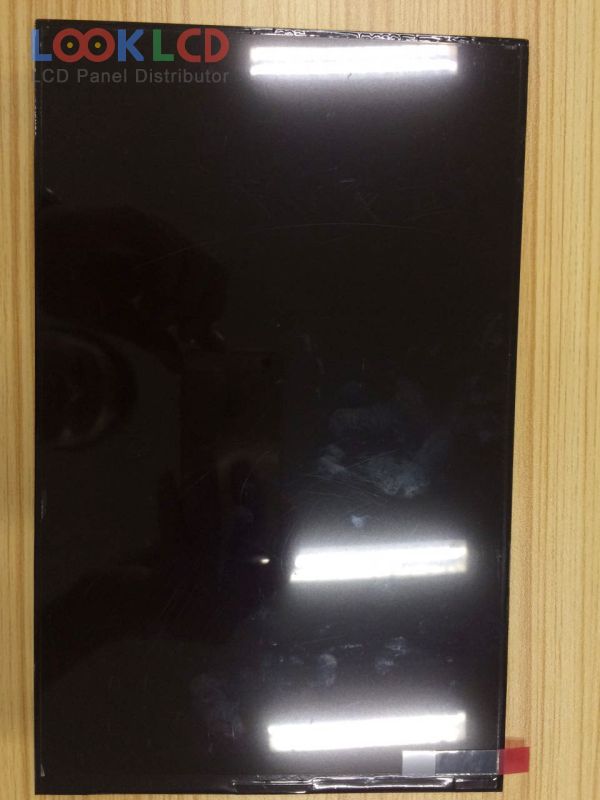

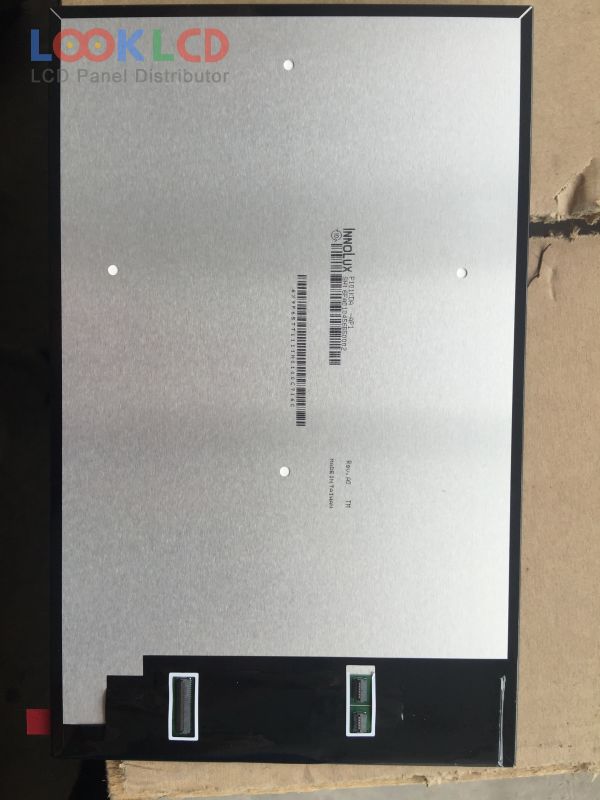

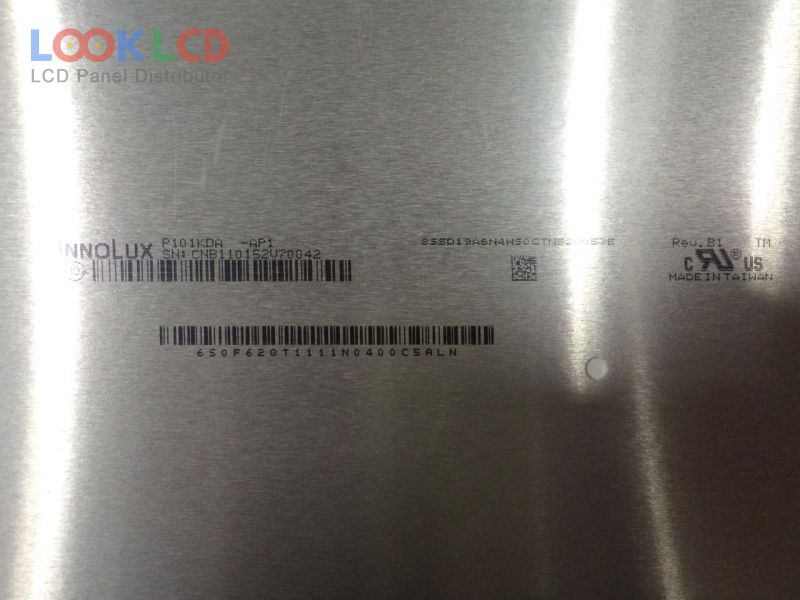

| PartNumber | P101KDA-AP1 |
| Marca | Innolux |
| mărimea | 10.1 |
| Aplicație | PAD |
| Rezoluţie | 1200×1920 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | INNOLUX |
| model de panou | P101KDA-AP1 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1200(RGB)×1920 , WUXGA |
| modul de afișare | AAS, Normally Black, Transmissive |
| Zonă activă | 135.36×216.576 mm |
| contur | 143×227.93×4.3 mm |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193170% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4 stringsWLEDWithout Driver |
| interfață de semnal | MIPI (4 data lanes), 45 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
