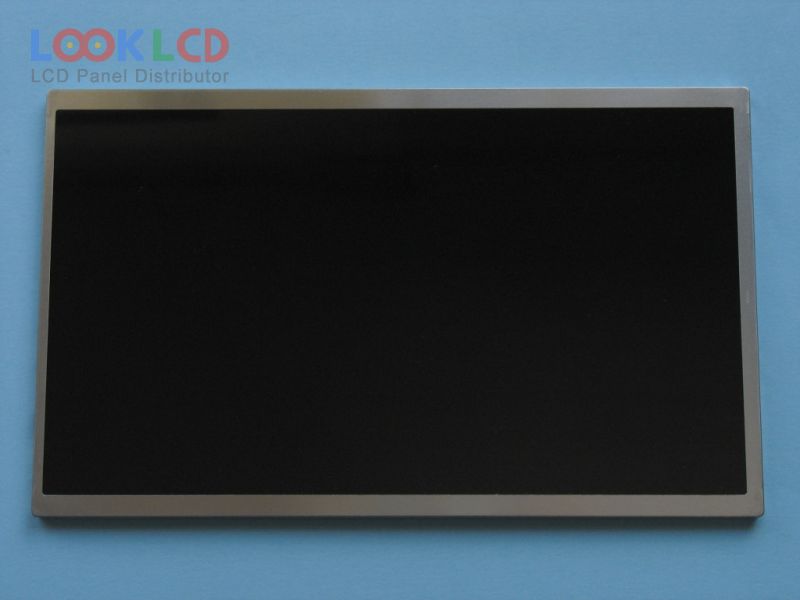

| PartNumber | LP101WH1-TLA1 |
| Marca | LG Display |
| mărimea | 10.1 |
| Aplicație | NBPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | LG Display |
| model de panou | LP101WH1-TLA1 3 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 222.73×125.22 mm |
| contur | 235×143×5.2 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Glare (Haze 0%) |
| luminozitatea | 200 cd/m² (Min.) |
| Raport de contrast | 400:1 (Min.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 16 (Typ.)(Tr+Td) |
| unghi de vedere | 30/30/10/20 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 9S4PWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| LP101WH1-TLA1 | LG Display | 10.1 | 1366×768 |
| LP101WH1-TLB5 | LG Display | 10.1 | 1366×768 |
| LP101WH2-TLA2 | LG Display | 10.1 | 1366×768 |
| LP101WH4-SLA6 | LG Display | 10.1 | 1366×768 |
| LP101WH4-SLAB | LG Display | 10.1 | 1366×768 |
| LP101WS1-TLA1 | LG Display | 10.1 | 1024×576 |
| LP101WS1-TLB2 | LG Display | 10.1 | 1024×576 |
| LP101WSA-TLB1 | LG Display | 10.1 | 1024×600 |
| LP101WX2-SLA1 | LG Display | 10.1 | 1280×800 |
| LP101WX2-SLP1 | LG Display | 10.1 | 1280×800 |
| B140XTT01.0 | AUO | 14.0 | 1366×768 |
| B156HTB01.0 | AUO | 15.6 | 1920×1080 |
| B173ZAN01.0 | AUO | 17.3 | 3840×2160 |
| LM-DA53-22NTW | SANYO | 8.0 | 640×480 |
| LP121WX3-TLB1 | LG Display | 12.1 | 1280×800 |
| LP156WF4-SPB1 | LG Display | 15.6 | 1920×1080 |
| LTN133AT05-001 | Samsung | 13.3 | 1280×800 |
| LTN140HL02-201 | Samsung | 14.0 | 1920×1080 |
| LTN184HT05-D01 | Samsung | 18.4 | 1920×1080 |
| N140BGE-L12 | Innolux | 14.0 | 1366×768 |
