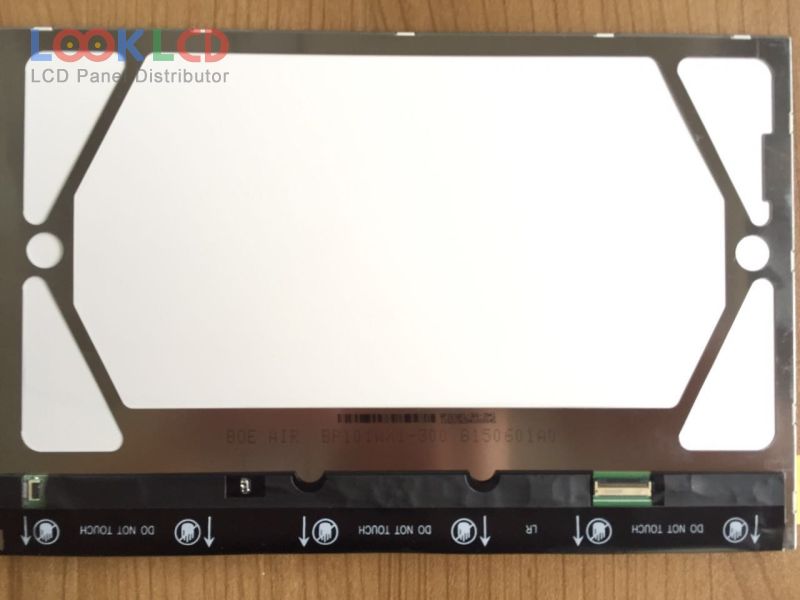

| PartNumber | BP101WX1-300 |
| Marca | BOE |
| mărimea | 10.1 |
| Aplicație | PAD |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 900:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | BOE |
| model de panou | BP101WX1-300 5 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | ADS, Normally Black, Transmissive |
| Zonă activă | 216.96×135.6 mm |
| contur | 228.21×148.86×4.59 mm |
| suprafaţă | Hard coating (3H), Antireflection |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 900:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193153% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4 stringsWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 8-bit), 45 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
| B101EW05 V0 | AUO | 10.1 | 1280×800 |
| BP101WX1-100 | BOE | 10.1 | 1280×800 |
| BP101WX1-200 | BOE | 10.1 | 1280×800 |
| BP101WX1-206 | BOE | 10.1 | 1280×800 |
| BP101WX1-210 | BOE | 10.1 | 1280×800 |
| BP101WX1-300 | BOE | 10.1 | 1280×800 |
| BP101WX1-400 | BOE | 10.1 | 1280×800 |
| LP101WH4-SLP2 | LG Display | 10.1 | 1366×768 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
| P101KDA-AP1 | Innolux | 10.1 | 1200×1920 |
| AT090TN23 | Innolux | 9.0 | 1280×800 |
| B101EAN01.2 | AUO | 10.1 | 1280×800 |
| B101UAN02.1 | AUO | 10.1 | 1920×1200 |
| EJ101IA-01C | Innolux | 10.1 | 1280×800 |
| HE070IA-04M | Innolux | 7.0 | 800×1280 |
| HT12X21-221 | HYDIS | 12.1 | 1024×768 |
| HV121WX4-120 | HYDIS | 12.1 | 1280×800 |
| LQ104X2LX05A | SHARP | 10.4 | 1024×768 |
| LTL101AL06-002 | Samsung | 10.1 | 1280×800 |
| PJ101IA-01A | Innolux | 10.1 | 1280×800 |
