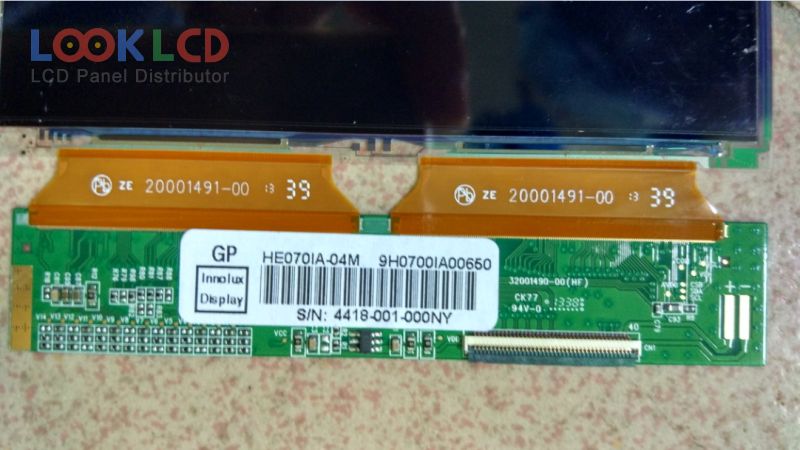

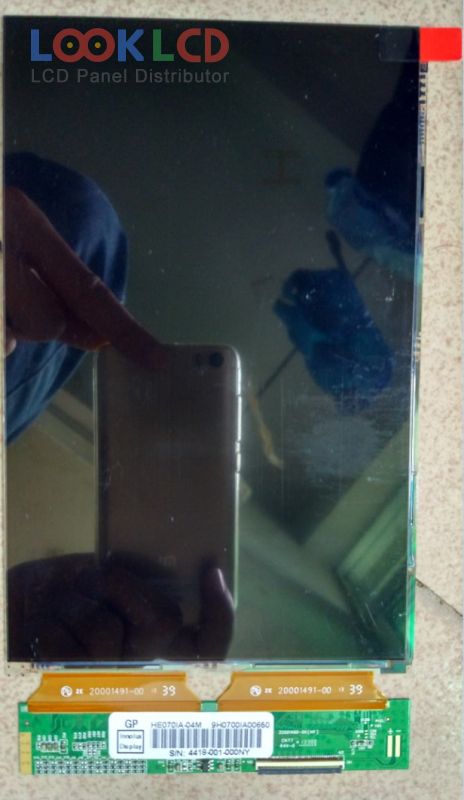

| PartNumber | HE070IA-04M |
| Marca | Innolux |
| mărimea | 7.0 |
| Aplicație | PAD |
| Rezoluţie | 800×1280 |
| Compoziţie | CELL |
| Luminozitate | 0 |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | No B/L |
| Interfață | MIPI |
| marca panoului | INNOLUX |
| model de panou | HE070IA-04M |
| tip panou | a-Si TFT-LCD , CELL |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×1280 , WXGA |
| modul de afișare | IPS, Normally Black, Transmissive |
| Zonă activă | 94.2×150.72 mm |
| contur | 101.5×159.52×0.77 mm |
| suprafaţă | Hard coating |
| adâncimea sticlei | 0.25+0.25 mm |
| transmisivitatea | 3.6% (Typ.)(with Polarizer) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193160% |
| timp de raspuns | 15/25 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| interfață de semnal | MIPI (4 data lanes), 40 pins |
| tensiune de intrare | 3.3/8.8/22.0/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplicarea | PAD |
