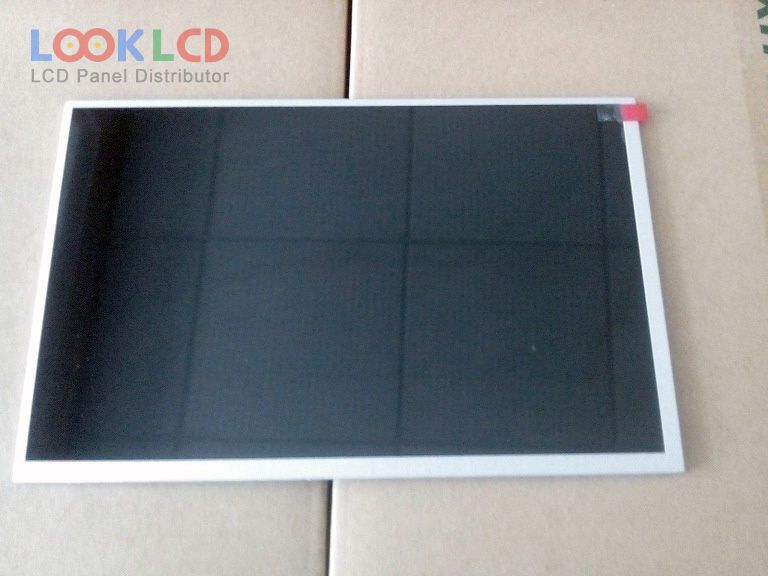

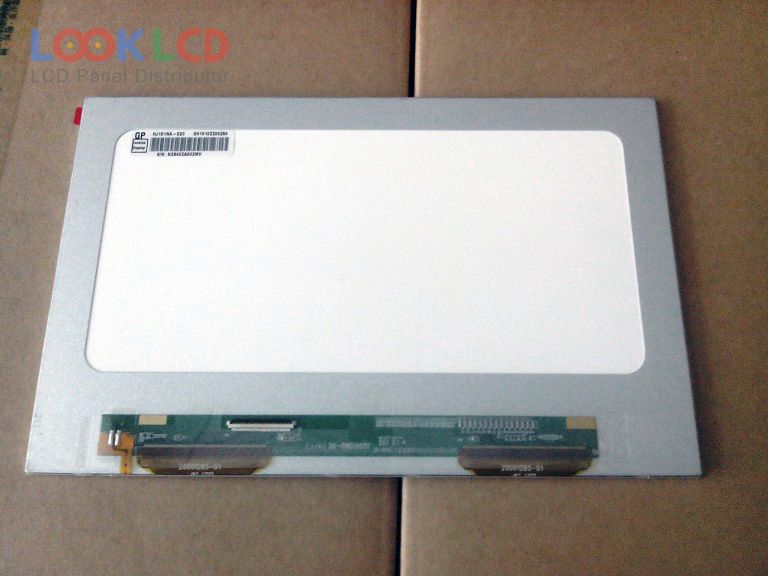

| PartNumber | HJ101NA-02C |
| Marca | Innolux |
| mărimea | 10.1 |
| Aplicație | PAD |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 700:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CHIMEI INNOLUX |
| model de panou | HJ101NA-02C |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 216.96×135.6 mm |
| contur | 229.46×149.1×5.5 mm |
| suprafaţă | Glare (Haze 0%) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 75/75/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 40 pins |
| tensiune de intrare | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VHL) |
| aplicarea | PAD |
| B101AW01 V2 HW0A | AUO | 10.1 | 1024×576 |
| B101UAN07.0 | AUO | 10.1 | 1200×1920 |
| B101XTN01.1 | AUO | 10.1 | 1366×768 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| HJ101IA-01F | Innolux | 10.1 | 1280×800 |
| HJ101IA-01I | Innolux | 10.1 | 1280×800 |
| HJ101IA-01Q | Innolux | 10.1 | 1280×800 |
| HJ101NA-02A | Innolux | 10.1 | 1280×800 |
| HJ101NA-02C | Innolux | 10.1 | 1280×800 |
| HSD101PFW2-C00 | HannStar | 10.1 | 1024×600 |
| BP082WX1-100 | BOE | 8.2 | 1280×800 |
| EJ070IA-04A | Innolux | 7.0 | 800×1280 |
| HV121P01-101 | HYDIS | 12.1 | 1400×1050 |
| HV121WX6-112 | HYDIS | 12.1 | 1280×800 |
| LD089WX1-SL03 | LG Display | 8.9 | 1280×768 |
| LP094WX1-SLA1 | LG Display | 9.4 | 1280×800 |
| LP097X02-SLA2 | LG Display | 9.7 | 1024×768 |
| LP101WX2-SLA1 | LG Display | 10.1 | 1280×800 |
| LTN097XL01-A02 | Samsung | 9.7 | 1024×768 |
| N070ICE-GB2 | Innolux | 7.0 | 800×1280 |
